IEC60884 Clause 12.14 Plug Socket Tester Of Lateral Strain For Socket - Outlets With 5N Weight​

IEC60884 Clause 12.14 Plug Socket Tester Of Lateral Strain For Socket - Outlets With 5N Weight​

  • IEC60884 Clause 12.14 Plug Socket Tester Of Lateral Strain For Socket - Outlets With 5N Weight​
  • IEC60884 Clause 12.14 Plug Socket Tester Of Lateral Strain For Socket - Outlets With 5N Weight​
  • IEC60884 Clause 12.14 Plug Socket Tester Of Lateral Strain For Socket - Outlets With 5N Weight​
  • IEC60884 Clause 12.14 Plug Socket Tester Of Lateral Strain For Socket - Outlets With 5N Weight​
IEC60884 Clause 12.14 Plug Socket Tester Of Lateral Strain For Socket - Outlets With 5N Weight​
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: HC9906
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Cartoon box
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 25 sets per month
Contact Now
Detailed Product Description
Material: Stainless Steel Weight: 5 N
Test Time: 4 Times ,turn Through 90° After Each Test Configuration: Provide 3 Test Plugs According To Relevant Standard
Highlight:

electric socket tester

,

electrical plug tester

IEC60884clause 12.14 testing equipment of Lateral Strain for socket-outlets with 5N weight​



Standard: IEC 60884-1 2013 clause 13.14 figure 13



Application: This device is use to check whether any damage to the socket-outlets ratings up to 16A and 250V when a inserted appliance applying a lateral strain to it.



Test sample: Socket-outlets



Feature: Made according to standard dimension requirements, use to check the mechanical strength of socket hole

Parameters:



Standard IEC60884 Figure 13
Lifting heavy weights 5N
Test samples socket of rated current is ≤ 16A and the voltage is ≤ 250V

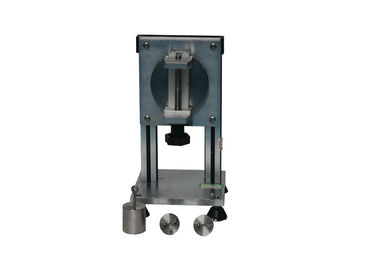

IEC60884 Clause 12.14 Plug Socket Tester Of Lateral Strain For Socket - Outlets With 5N Weight​ 0

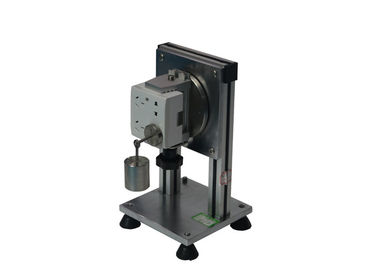

IEC60884 Clause 12.14 Plug Socket Tester Of Lateral Strain For Socket - Outlets With 5N Weight​ 1

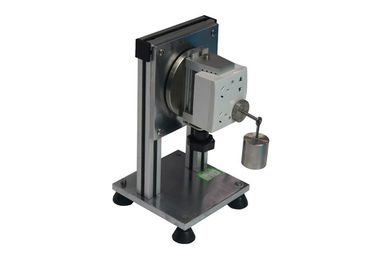

IEC60884 Clause 12.14 Plug Socket Tester Of Lateral Strain For Socket - Outlets With 5N Weight​ 2

Standard clause :

Socket-outlets shall withstand the laterin imposed by equipment likely to be introduced into them .

For socket-outlets having ratings up to and including 16A and 250V,compliance is checked by means of device shown in figure 13.

Each specimen is mounted on a vertical surface with the plane through the socket-contacts horizontal .The device is then fully engaged and a weight hung on it such that the force exerted is 5N.

The device is removed after I min and the socket-outlet is turned through 90,on the mounting surface ,The test is made four times ,the socket-outlet being turned through 90 after each engagement .

During the test the device shall bnot become disengaged from the socket-outlet.

After the test , the socket-outlet shall show no damage within the meaning of this standard ,in particular ,they shall comply with the requirements of clause 22.
