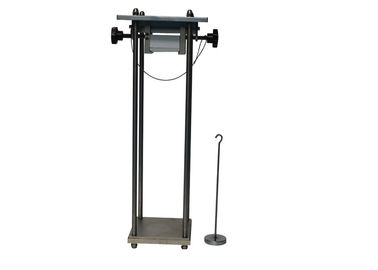

Manual Verification Replaceable Socket Maximum And Minimum Pull-Out Force Tester

Brand Name:	HongCe
Model Number:	HC9916
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	25 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Test Plug:

3 Test Plugs And 2 Test Pins

Weights:

One Set

Standard:

IEC60884、VDE 0620

Standard Figure:

IEC 60884-1 2013 Figure 18 And 19

Operation:

Manual

Material:

Stainless Steel

Packaging Details:

plywood

Highlight:

electric socket tester

electrical plug tester

Product Description

Iec60884 Clause 22 Manual Verification Of Replaceable Socket Maximum And Minimum Pull-Out Force Tester

Standard

IEC 60884-1 2013 clause 22 and figure 18 and 19, VDE 0620 and so on

Application

This device is used for verify whether the maximum withdraw force and minimum withdraw force to pullout a plug or plug pin from socket in the standard range. The structure of electrical accessories should be easy to insert and pull out the plug, and should prevent the plug in normal use.

Test sample

Household or similar purpose sockets

Feature

In according with standard requirements.The top plate swivels up from a horizontal position to a vertical orientation and the clamping device can be rotated in the top plate. These features allow the device to be set up in many different configurations to meet different standard requirements. Standard plugs and weights are supplied to perform testing on sockets rated up to 16A.

Parameters

Test plug: made of hardened steel, provide 3 test plugs and 2 test pins
Weights: one set. Superposition can be achieved 100N, the force applied by added weight of 1/10 test force
Operation: manual
With a safety rope, prevent the drop of test plug

Rated value	Number of poles	Pulling force(N)
		The maximum measure gauge of multipole plug pin	The minimum measure gauge of Single plug pin	The maximum measure gauge of single plug pin
≤10A	2	40	1.5	17
	3	50
＞10A～16A	2	50	2	18
	3	54
	More than 3	70
＞16A～32A	2	80	3	27
	3	80
	More than 3	100

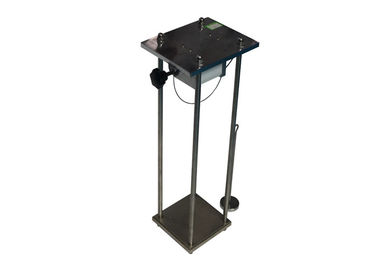

Manual Verification Replaceable Socket Maximum And Minimum Pull-Out Force Tester 0

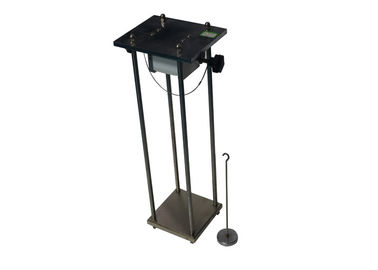

Manual Verification Replaceable Socket Maximum And Minimum Pull-Out Force Tester 1

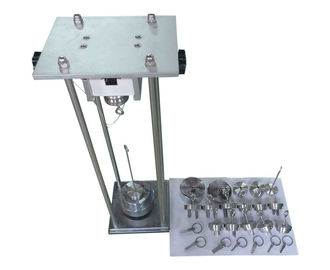

Manual Verification Replaceable Socket Maximum And Minimum Pull-Out Force Tester 2

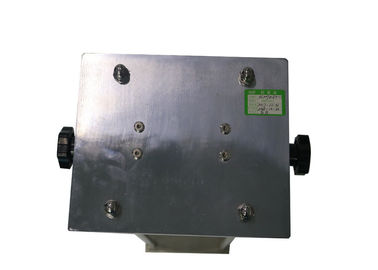

Manual Verification Replaceable Socket Maximum And Minimum Pull-Out Force Tester 3
