IEC 60884 Mechanical Tensile Strength Test Equipment For Covers Or Cover - Plates With Gauge 0 - 200N

Brand Name:	HongCe
Model Number:	HH9943
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Push - Pull Force Gauge:

0 - 200N

Standard:

IEC 60884-1, IEC60669-1

River Forcing Method:

Manual

Test Sample:

Covers , Cover-plates Or Parts Of Them

Packaging Details:

plywood

Highlight:

tensile strength testing equipment

lab testing equipment

Product Description

IEC 60884 Mechanical Strength Test Apparatus For Covers Or Cover - Plates With Gauge 0 - 200N

Standard:

IEC 60884-1 (GB 2099.1) clause 24.14.1 and Figure 31, IEC60669-1 (GB 16915.1) Clause 20.4 Figure 19, etc.

Test Scope:

Mainly used for checking the forces necessary to retain or remove covers, cover-plates or parts of them.

Parameters:

1.Driver forcing method:Manual

2. the test fixture: clamping range of 100mm;

3. Sheet of hard material: (1 ± 0.1) mm;

4. Push-pull force gauge: 0-200N, can be achieved (40N, 80N, 120N).

5. Mounting box: 1 PC.

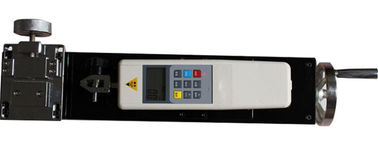

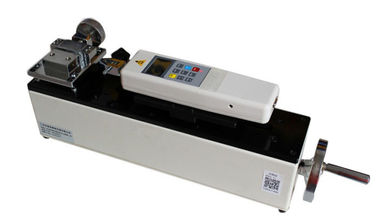

Figure For Reference:

IEC 60884 Mechanical Tensile Strength Test Equipment For Covers Or Cover - Plates With Gauge 0 - 200N 0
