| Test: | Vertical Drop Test | Drop Hammer: | 2J, 5J, 10J, 20J (option 50J) |
|---|---|---|---|
| Material: | Stainless Steel | Power Supply: | 220VAC 50Hz |
| Lift Stroke: | 400-1350mm | Release Mode: | Electromagnet Instantaneous Release |
| High Light: | impact test machine,pendulum impact testing machine |
||
Vertical Impact Hammer IEC 60068-2-75 Merchanical Strength Testing Equipment
Technical parameters:
| Power supply | 220V / 50Hz |
| Lift stroke | 400-13500mm, manual operation, the impact specimen height is 200-850mm |
| Hammer | 2J, 5J, 10J, 20J, (option 50J)stainless steel, matching 4 conduits. |
| Installation mode | The hammers are by electromagnet, the conduits are by screw-in. |
| Release mode | Key control, electromagnet instantaneous release. |
| Dimensions | 1000*1000*1620mm, about150kg |
Height of fall
To produce impacts of the required severity, the striking element shall be released from a height depending on the equivalent mass of the pendulum, according to table 2.
Table 2-Height of fall
|
Energy J |
0.14 |
0.2 |
0.3 |
0.35 |
0.4 |
0.5 |
0.7 |
1 |
2 |
5 |
10 |
20 |
50 |
||
|
Equivalent mass kg |
0.25 |
0.2 |
0.25 |
0.2 |
0.25 |
0.2 |
0.2 |
0.25 |
0.25 |
0.25 |
0.5 |
1.7 |
5 |
5 |
10 |
|
Height of fall mm ±1% |
56 |
100 |
80 |
150 |
140 |
200 |
250 |
200 |
280 |
400 |
400 |
300 |
200 |
400 |
500 |
|
NOTES 1. See note in 3.2.2. 2. In this part of IEC 60068, the energy, J, is calculated taking the standard acceleration due to the earth’s gravity (gn), rounded up to the nearest whole number, that is 10 m/s² |
|||||||||||||||
Product information:

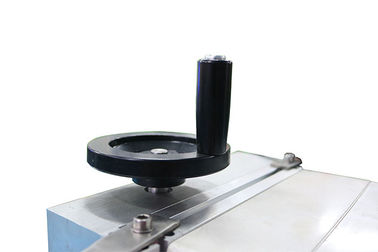

This device conforms to the standard requirement of the IEC60068-2-75 Test Ehc. It is for testing enclosure mechanical strength of household and similar electrical appliances, lamps. The device is released by the electromagnet, which can ensure the instantaneous release and the vertical drop. The lifting device is combined by screw guide rail, which can make the lower end of the conduit smooth contact with the surface of the specimen, the fixed drop height is the length of the guide rail, just contact no need to adjust, easy to use. Standard equipped with 2, 5, 10, 20, 50 J hammer and conduit, it is suitable for the enclosure mechanical strength test of most products.
Operation steps:
