products details

Home Products

300N Steel Compression Testing Machine

Brand Name:	HongCe
Model Number:	CP-1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS

Material:

Steel

Weight:

300N

Operating Method:

Manual

Standard:

IEC 60884-1 Figure 8

Packaging Details:

Plywood

Highlight:

material test machine

compressive strength machine

Product Description

300N Steel Compression Testing Apparatus IEC 60884-1 Figure 8

Product details:

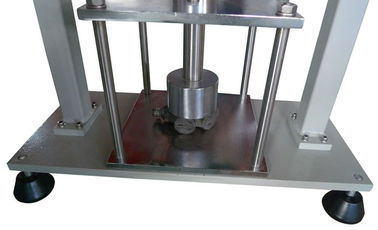

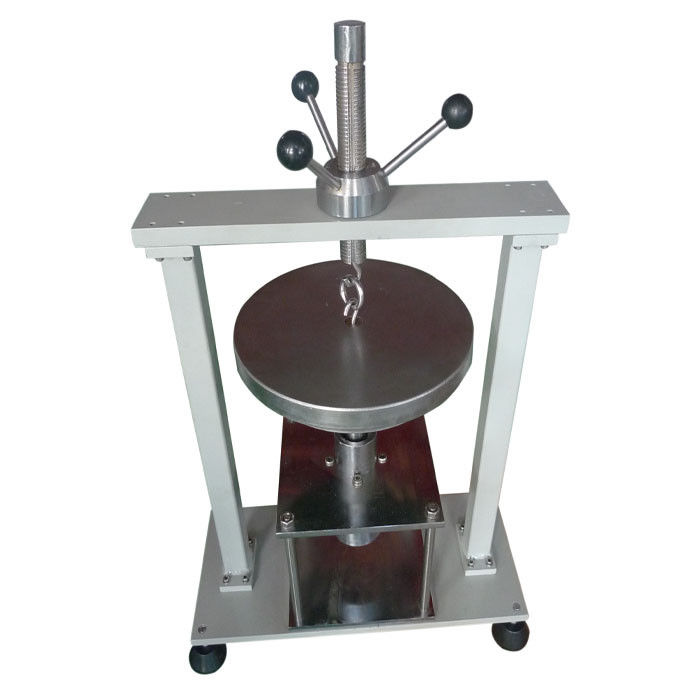

The apparatus for compression test of 24.5 is desgined and manufactured according to IEC 60884 fig 8, it is used to test the compression resistance of test specimens. It consists of steel pressure plate , steel base and 300 N weight, the operation method is by manual.

Test principle:

The specimens are subjected to a compression test as shown in figure 8, the temperature of the pressure plate, of the base and of the specimens being (23±2) ℃ and the force applied being 300 N.

The specimens are first placed in position a), as shown in figure 8, and the force is applied for 1 min. They are then placed in position b), as shown in figure 8, and again subjected to the force for 1 min.

The specimens are removed from the test apparatus and after 15 min they shall show no damage within the meaning of this standard.

Technical parameters:

Number of Test Station	1
Operating method	By manual
Weight	300N(pile up)
Conforms to standard	IEC 60884-1 Fig.8

300N Steel Compression Testing Machine 0
