Plug Socket Insulation Sleeves Abnormal Heating Resistance Tester With 20 MM Brass Fixture

Brand Name:	HongCe
Model Number:	PI-1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Standard:

IEC60884-1 Figure 40

Bolt Hole:

＞0.1 Mm

Metal Parts B Material:

Brass

Metal Parts B Length:

20 Mm

Packaging Details:

Plywood

Highlight:

socket tester

electrical plug tester

Product Description

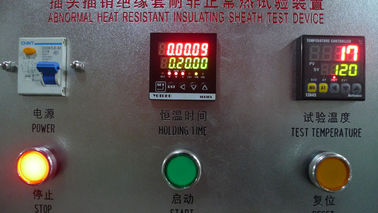

Plug Socket Insulation Sleeves Abnormal Heating Resistance Tester With 20 MM Brass Fixture

Product details:

The abormal heating resistance test device is designed and manufactured according to IEC60884-1 figure 40. It is used to test abnormal heating resistance and burning resistance of bolt and plug with insulation sleeve. It can imitate the insulated parts of which the plug-and-socket device’s safety performance may be damaged by electric heat stress. It should not be over damaged for exposure to overheating and under fire.

Technical parameters:

Insulation board: 5 mm thickness round flat surface, the diameter of the two times as test product surface' diameter;

Metal parts B (Fixture):

Length	20 mm
Material	Brass
Quantity	Five pieces
Can be replaced	Yes

Gap between insulation board and metal parts B: 3 mm, ensuring surrounding cross-ventilation

Distance between thermocouple and the metal parts B: 7 mm;

Bolt hole of Metal parts B: more than 0.1 mm;

Equipped with K-type electric heater.

Plug Socket Insulation Sleeves Abnormal Heating Resistance Tester With 20 MM Brass Fixture 0
