PLC IEC61058-1 Switch Plug Socket Tester For Endurance Test 6 Load Ports

PLC IEC61058-1 Switch Plug Socket Tester For Endurance Test 6 Load Ports

PLC IEC61058-1 Switch Plug Socket Tester For Endurance Test 6 Load Ports
PLC IEC61058-1 Switch Plug Socket Tester For Endurance Test 6 Load Ports
PLC IEC61058-1 Switch Plug Socket Tester For Endurance Test 6 Load Ports
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HC9914
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Name: Switch Plug Socket Endurance Tester Warranty: 1 Year
Standard: IEC 60884-1 Clause 20, 21, CISPR 14-1, IEC 61058-1, IEC60669-1 Etc. Application: Switch Plug Socket Endurance Test
Power Supply: AC 220V±10% 50Hz Operation Interface: 7 Inch Color LCD Touch Screen
Stations: 3 Liner Stations; 3 Rotating Stations Rotate Angle: 0-360°, Preset
High Light:

IEC 61058-1 Switch Plug Socket Tester

,

PLC Switch Plug Socket Tester

IEC61058-1 Switch Plug Socket Tester For Endurance Test / 6 Load Ports / PLC Control



Standard: IEC 60884-1 2013 clause 20, 21, CISPR 14-1, IEC 61058-1, IEC60669-1 etc.

Application: This device is used for household and similar purpose fixed electrical appliance switch, plug and socket, coupler for on-off ability, breaking capacity and normal operation life test. To verify whether the switch, plug or socket can withstand normal use, any mechanical damage or electrical fatigue failure under normal operation, any contact adhesion phenomenon or long term closure or disconnection phenomenon, to test whether excessive wear or other harmful consequences.

Test sample: Household or similar purpose switches, plugs, sockets, couplers

Feature: Using aluminum alloy frame, stainless steel sealing plate, driven by the servo motor, precision ball screw and synchronous belt drive, 7 inch color touch screen operation and powerful digital display function, PLC control system. Can perform lift test to button switch, toggle switch, rocker switch, rotary switch, plug and socket. With corresponding control system, can perform loading test with load(resistive, inductive and capacitive). Preset test times, conduction current time (opening time), test speed, test trip and rotation angle (up to 15 angles). With current display function, can display the conducting current.



Parameters:

Model H9914 H9914A H9914B H9914C
Power supply AC 220V±10% 50Hz
Operation interface 7 inch color LCD touch screen
Drive mode servo motor + ball screw / timing belt or pneumatic
Control system PLC control
Stations

6 Stations:

3 liner stations;

3 rotating stations.

Synchronization control

2 liner stations.

Synchronization control

2 Stations:

1 liner stations;

1 rotating stations.

Independent control

3 stations, pneumatic.

Independent control

Test sample Button switch, rocker switch, toggle switch, rotary switch, plug and socket Button switch, rocker switch, toggle switch, plug and socket Button switch, rocker switch, toggle switch, rotary switch, plug and socket Button switch, plug and socket
Test times 0-999999, preset 0-999999, preset 0-999999, preset 0-999999, preset
Connecting time 0-99.9s, preset 0-99.9s, preset 0-99.9s, preset 0-99.9s, preset
Liner stroke 0-100mm, preset 0-100mm, preset 0-100mm, preset 100mm
Rotate angle 0-360°, preset - 0-360°, preset -
Test speed

15 times per min

7.5 times per min

30 times per min

15 times per min

7.5 times per min

30 times per min

15 times per min

7.5 times per min

30 times per min

15 times per min

7.5 times per min

30 times per min

Clamp XYZ three axis clamp XYZ three axis clamp XYZ three axis clamp XYZ three axis clamp

Test mechanism

(multi)

Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism Button switch push rod
Load ports 6 ports 2 ports 2 ports 3 ports

Dimension

Weight

WDH=1090*800*700mm

147kg

WDH=880*680*700mm

80kg

WDH=880*680*700mm

80kg

WDH=880*680*700mm

80kg

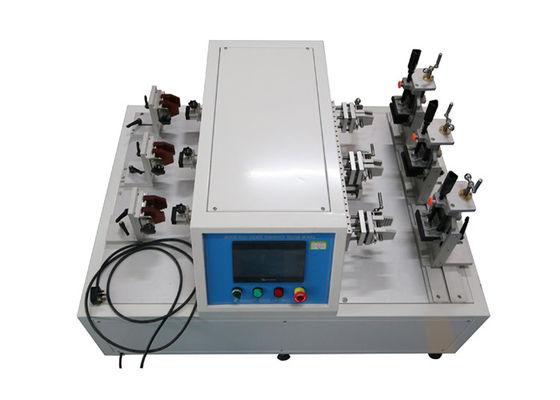

PLC IEC61058-1 Switch Plug Socket Tester For Endurance Test 6 Load Ports 0

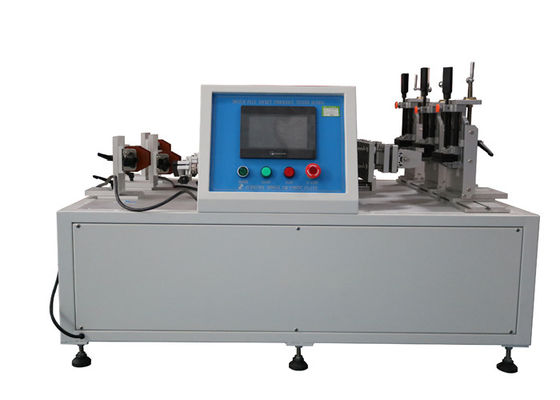

PLC IEC61058-1 Switch Plug Socket Tester For Endurance Test 6 Load Ports 1

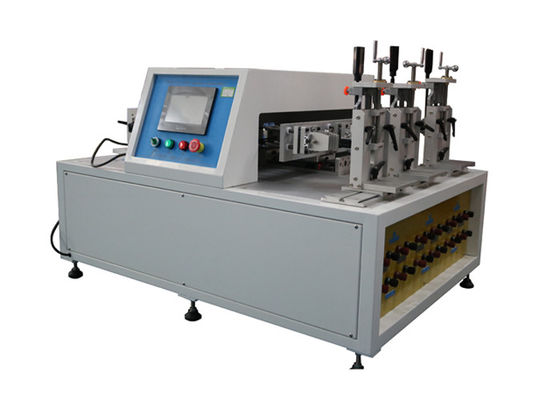

PLC IEC61058-1 Switch Plug Socket Tester For Endurance Test 6 Load Ports 2
