IEC 60811-1-4 Low Temperature Elongation Testing Equipment for Cable Sheaths

Brand Name:	HongCe
Model Number:	HDX1308
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Elongation Speed:

（25±5）mm/min

Work Station:

Displacement Measurement Accurany:

±1mm

Maximum Elongation Degree:

220mm

Chuck Mode:

Not Self-tight Type

Packaging Details:

Carton Box

Highlight:

power cable tester

electric wire tester

Product Description

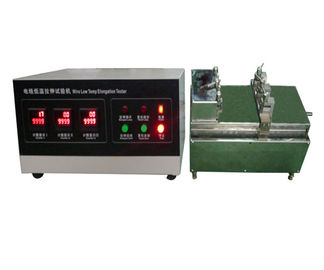

IEC 60811-1-4 Low Temperature Elongation Testing Equipment for Cable Sheaths

Product information:

This test apparatus conforms to the standard requirement ofIEC60811-1-4 clause 8.3 and 8.4, common test methods for insulating and sheathing materials of electric and optical cables-part 1-4:Methods for general application-Test at low temperature. It is applicable for the insulating sheath of the high polymer material, electric wire, rubber, and plastic to do the tensile test at the environment of -35°~0°.

Technical Parameters:

Input Power	220V(AC)±10%, 50Hz
Chuck mode	Not self-tight type
Sample specifications	Ⅰ,Ⅱ dumbbell sheet
Displacement measurement	Display value ±1mm
Maximum elongation degree	220mm
Elongation speed	(25±5)mm/min
Number of test samples	3 pieces at one time

How low temperature test chamber work with low temperature elongation testing equipment?

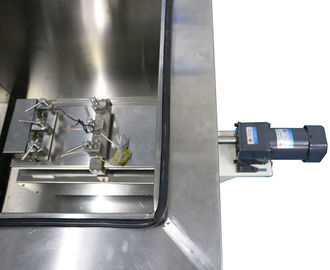

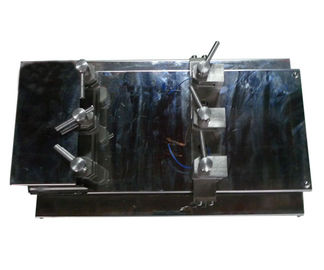

1. The mechanical part of low temperature elongation testing equipment is input into the chamber of low temperature test chamber.

2. On the side of the low temperature test chamber, there is a motor connected with the mechanical part of low temperature elongation testing equipment to drive the elongation actions of the mechanical part of low temperature elongation testing equipment.

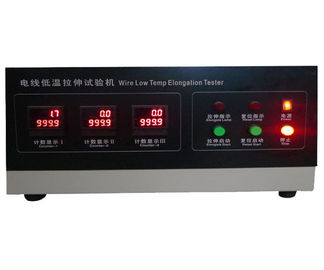

3. The control part of low temperature elongation testing equipment is connected with the motor and put outside of the chamber, in order to display testing values and monitor the testing.

IEC 60811-1-4 Low Temperature Elongation Testing Equipment for Cable Sheaths 0
