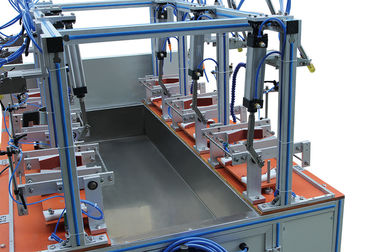

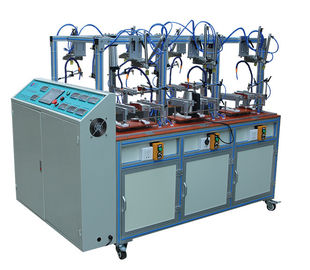

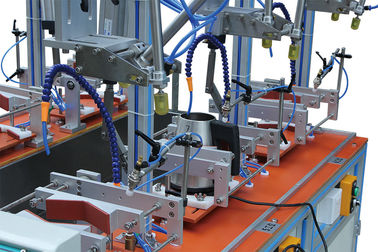

Fully Auto IEC Test Equipment Electric Water Kettle Testing Machine With PLC Touch Screen Control

Fully Auto IEC Test Equipment Electric Water Kettle Testing Machine With PLC Touch Screen Control

    • Fully Auto IEC Test Equipment Electric Water Kettle Testing Machine With PLC Touch Screen Control
    • Fully Auto IEC Test Equipment Electric Water Kettle Testing Machine With PLC Touch Screen Control
    • Fully Auto IEC Test Equipment Electric Water Kettle Testing Machine With PLC Touch Screen Control
  • Fully Auto IEC Test Equipment Electric Water Kettle Testing Machine With PLC Touch Screen Control

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Third Party Calibration(cost additional)
    Model Number: KP-5/6/10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiatable
    Packaging Details: Plywood
    Delivery Time: 30 work days
    Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 10 set/month
    Contact Now
    Detailed Product Description
    Standard: IEC 60335-2-15 Workstation: 3/6/10 , Can Be Customized
    Power Supply: 220V, 50Hz Or 110V, 60Hz Control: PLC
    High Light:

    portable appliance testing equipment

    ,

    portable appliance tester


    Fully Auto IEC Test Equipment Electric Water Kettle Testing Machine With PLC Touch Screen Control


    Product information:
    The electric water kettle tester is designed and manufactured according to IEC 60335-2-15 clause 19.101, 19.102, 22.103 and etc.
    It is suitable for comprehensive lifespan testing of various types of conventional cordless electrothermal kettle, complete simulation of artificial water boiling mode.
    The whole without staff care, failure alarm.
    Each station configured independently, without mutual interference. Very low fault rate.

    Basic functions:
    Contains five functions: dry heating (self-cooling), dry heating (water cooling), withdraw (without current), withdraw (with current), cyclic boiling water.
    1.  Dry heating (self-cooling): start--kettle pouring-kettle back to origin-- dry heating end (temperature controller jumped) --natural cooling to the thermostat reset -- cyclic dry heating
    2.  Dry heating (water cooling):
    Start -- kettle pouring -- began to dry heating -- dry heating end (thermostat trip)--water cooling to the thermostat reset (water volume adjustable) -- kettle pouring-- cyclic dry heating kettle;
    3.  Withdraw (without current): Start -- began to withdraw (cycle work);
    4.  Withdraw (with current): Start -- injecting water (water volume adjustable) -- withdraw (with current) -- cycle work--change the water interval (can be set times) -- cycle work;
    5.  Cyclic boiling water: Start--kettle pouring-kettle back to origin--injecting water (can set the injection water volume)--heating and boiling water--after the water is boiled (thermostat trip)--kettle pouring --kettle back to origin--cycle work.

    Control system:
    Use PLC and touch screen control system, operation is stable, maintenance is simple and convenient.
    The parameter setting and each station working state information can be controlled and displayed on the touch screen.
    With independent design life detection board to monitor products working state, alarm occurs when there is abnormal and fault.
    The equipment can automatically count, the test times can be set, when it reaches to the preset value, the equipment will stop working.

    Main control parameters:
    1) Water pouring time: 1~9999(s) adjustable; kettle back to origin time: 1~9999(s) adjustable
    2) Water injection time: 1~9999(s) adjustable; cooling time: 1~9999(s) adjustable
    3) Withdraw conduction time: 1~9999(s) adjustable; withdraw break off time: 1~9999(s) adjustable
    4) Rest set: 1~9999(times) adjustable; rest time: 1~9999(s) adjustable
    5) Test times: 1~9999(times) adjustable; actual counting times: 1~9999(s) adjustable

    Main techinical parameteters:

    Power supply

    220V, 50Hz

    Test samples

    Conventional cordless electrothermal kettle , can be customized for special test samples

    Application

    comprehensive lifespan test for various types of conventional cordless electrothermal kettle

    Work station

    3 workstations, 6 workstations (single/double row), 10 workstations(single/double row), can be customized

    Display mode

    Touch screen

    Alarm function

    With fault alarm and counting alarm

    Safety protection

    with leakage protection and undervoltage protection safety devices

    Efficiency

    Related with the sample’s actual working time, each action control time can be set.

    Electric index

    Power supply: 220V, 50Hz or 110V, 60Hz
    Machine power: about 500W (not including the power of the test sample)
    Single station maximum load power: 4400W
    Air pressure: 0.4~0.6 Mpa

    Test mode

    1) Dry heating mode (self cooling)
    2) Dry heating mode (water cooling)
    3) Withdraw mode (without current)
    4) Withdraw mode (with current)
    5)Water boiling mode
