| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HJ0613A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 set per month |
| Test Object: | Cordless Electric Kettles, Cordless Irons, Cordless Blenders | Standard: | IEC 60335-2-3, IEC 60335-2-14, IEC 60335-2-15 |
|---|---|---|---|
| Test: | Endurance Test | Current Loading: | Max. 15A |
| Voltage Loading: | 0-250V | Test Cycles: | 0-999999 |
| Test Speed: | 0-30 Times/min | Drive: | Motor Drive |
| Station: | Single Station | Control: | Touch Screen |
| High Light: | electrical appliance tester,portable appliance testing equipment |
||
Cordless Blender / Iron / Kettle Insert And Withdraw Endurance Tester HJ0613
Description:
This is a multi function testing equipment can be used for verious cordless electrical appliance, include cordless blender, cordless iron, cord less kettle.

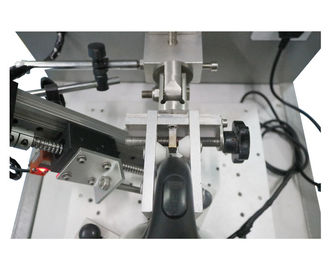

Special designed clamping device and structure can tight fix the sample and adjust the position to test different product.
PLC and touchscreen control system, make the test parameter setting very easy. All parameters can be set in touchscreen, multi parameters and functions for options. Press start, test carried out automatically. Manual operation can be done else.
Standard: IEC 60335-2-14 Clause 22.103, IEC 60335-2-3 Clause 22.105, IEC 60335-2-15 clause 22.103 and etc.
Application: Cordless electric kettles, cordless irons, cordless blenders, the contacts shall be constructed so that any electrical or mechanical failure that occurs during normal use shall not be dangerous and shall be verified by a plug-in test.
Test sample: Cordless electric kettles, cordless irons, cordless blenders
Feature: Make the two contacts of cordless electric kettles, cordless irons, cordless blenders to be Short-circuit, and supply 1.1 times of rated voltage to cordless electric kettle/ iron/ blender, then process the endurance test that the test sample’s body insert into and plug from the base at the speed of 10 times/min. And then process a certain times of insert & plug endurance test without load voltage. The test device can be connected to external load or has built-in load (optional), the test cycles can be preset (maximum 999999), the test system can record the test cycles and conduction cycles automatically during test, when the preset test cycles have been completed, the test device will stop testing automatically.
Technical parameters:
| Parameters / Model | J0613 | J0613A |
| Input Power | AC220V 50HZ | AC220V 50HZ |
| Control | Electrical control, Buttons operation | PLC control, touch screen operation |
| Station | Single station | Single station |
| Drive Method | motor-driven | motor-driven |
| Test Sample | Cordless water kettle | Cordless water kettle/iron/blender |
| Insert & Plug Stroke | 100mm | 0-100mm, can be preset on touch screen |
| Insert & Plug Speed | 0-30cycles/min, frequency control | 0-30 times/min, can be preset on touch screen |
| Test Cycles | 0-999999, can be preset | 0-999999, can be preset on touch screen |
| Conduction Cycles | 0-999999, can be displayed | 0-999999, can be displayed |
| Mechanical action | insert & plug action | insert & plug action and kettle switch open and close movement |
| Load | External 0-250V, 0-15A | Built-in 0-250V, 0-15A |
| Sample judgment | Judge conduction according to the current | Judge conduction according to the current |
| Dimensions | 1000×500×1200mm, 130kg | 1000×500×1200mm, 200kg |

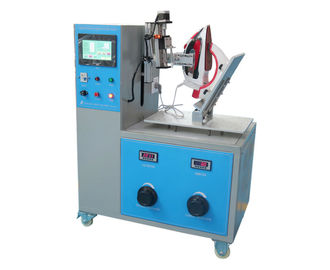

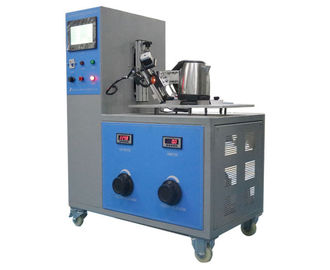

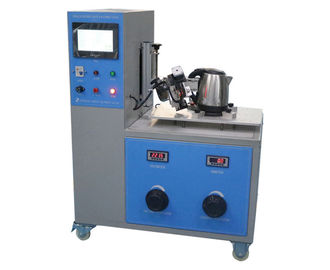

Picture view:
