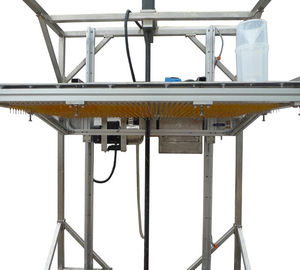

IEC 60529 Ingress Protection Test Equipment IPX1 IPX2 Movable Vertical Rain Drip Box

IEC 60529 Ingress Protection Test Equipment IPX1 IPX2 Movable Vertical Rain Drip Box

    • IEC 60529 Ingress Protection Test Equipment IPX1 IPX2 Movable Vertical Rain Drip Box
    • IEC 60529 Ingress Protection Test Equipment IPX1 IPX2 Movable Vertical Rain Drip Box
    • IEC 60529 Ingress Protection Test Equipment IPX1 IPX2 Movable Vertical Rain Drip Box
    • IEC 60529 Ingress Protection Test Equipment IPX1 IPX2 Movable Vertical Rain Drip Box
  • IEC 60529 Ingress Protection Test Equipment IPX1 IPX2 Movable Vertical Rain Drip Box

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Third party calibration certificate (Cost additional)
    Model Number: DP-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Plywood
    Delivery Time: 30 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 5 set per month
    Contact Now
    Detailed Product Description
    Waterproof Test Range: IPX1、IPX2 Vertical Drip Rain Area: 1000mmX600mm
    Drip Needle Aperture: Ф0.4MM Distance Between Holes: 20MM



    IEC 60529 IPX1 IPX2 Movable Vertical Rain Drip Box Waterproof Test Equipment



    Product information:



    Vertical Drip Rain Testing Machine is designed and manufactured according to IEC 60529 Degrees of protection provided by enclosures (IP Code), this equipment is widely used in lamps, electric and electronic products certification testing of IPX1,IPX2. This device has been widely adopted by domestic and foreign products certification laboratories, the performance of this equipment reaches to the international advanced level.



    The program of this test equipment is humanized, users can process IPX1~2 testing without re-setting any parameters manually by choosing the default test options; user also can set the test data to meet different testing standards by choosing the refine test options.





    Technical parameters:

    Project name

    Parameter specification

    Power supply

    AC220V /50

    Equipment power

    1KW

    Water supply

    The water-flow rates is >10L/min ±5%, pure water and without impurities, equipped with water cleaning filter

    Waterproof test range

    IPX1,IPX2

    Vertical drip rain area

    1000mmX600mm

    Drip needle aperture

    Ф0.4MM

    Distance between holes

    20MM

    Dripping speed (water flow)

    1mm/Min,3mm/Min adjustable

    Drip height

    200MM, adjustable

    Test time

    10Min, adjustable



    For the purpose of the tests, the surface area of the enclosure is calculated with a tolerance of 10%.

    Adequate safety precautions should be taken when testing the equipment in the energized condition.



    Test for second characteristic numeral 1 with the drip box



    The test is made with a device which produces a uniform flow of water drops over the whole area of the enclosure.



    The turntable on which the enclosure is placed has a rotation speed of 1 r/min and the eccentricity (distance between turntable axis and specimen axis) is approximately 100 mm.



    The enclosure under test is placed in its normal operating position under the drip box, the base of which is larger than that of the enclosure. Except for enclosures designed for wall or ceiling mounting, the support for the enclosure under test should be smaller than the base of the enclosure.

    An enclosure normally fixed to a wall or ceiling is fixed in its normal position of use to a wooden board having dimensions which are equal to those of that surface of the enclosure which is in contact with the wall or ceiling when the enclosure is mounted as normal use.



    The duration of test is 10 min.

    Note: When the base of the drip box is smaller than that of the enclosure under test, the latter may be divided into several sections, the area of each section being large enough to be covered by the dripping water. The test is continued until the whole area of the enclosure has sprinkled for the specified time.



    Function interface of this tester:

    IEC 60529 Ingress Protection Test Equipment IPX1 IPX2 Movable Vertical Rain Drip BoxIEC 60529 Ingress Protection Test Equipment IPX1 IPX2 Movable Vertical Rain Drip BoxIEC 60529 Ingress Protection Test Equipment IPX1 IPX2 Movable Vertical Rain Drip Box
