IEC60529 IPX5 IPX6 12.5mm Ingress Protection Test Equipment

IEC60529 IPX5 IPX6 12.5mm Ingress Protection Test Equipment

  • IEC60529 IPX5 IPX6 12.5mm Ingress Protection Test Equipment
  • IEC60529 IPX5 IPX6 12.5mm Ingress Protection Test Equipment
  • IEC60529 IPX5 IPX6 12.5mm Ingress Protection Test Equipment
  • IEC60529 IPX5 IPX6 12.5mm Ingress Protection Test Equipment
IEC60529 IPX5 IPX6 12.5mm Ingress Protection Test Equipment
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate (Cost Additional)
Model Number: HH0804
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plastic Tool Box
Delivery Time: 7 Days
Payment Terms: T/T
Supply Ability: 50 set/ month
Contact Now
Detailed Product Description
The Nozzle Diameter: Ф6.3mm And Ф12.5mm Water Flow: 12.5±0.625L/min And 100±5 L/min
The Distance From Jet Nozzle To Enclosure: 2.5~3m Pressure Gauge: 0~0.25MPa
Standard: IEC60529 Application: Water Proof Testing
Function: Ingress Protection Level Test Testing Time: Not Less Than 1min/m²(not Less Than 3 Mins)
High Light:

6.3mm Ingress Protection Test Equipment

,

IPX5 Handheld Jet Nozzle Tester

6.3 / 12.5mm Ingress Protection Test Equipment Handheld Jet Nozzle Tester IEC60529 IPX5 IPX6

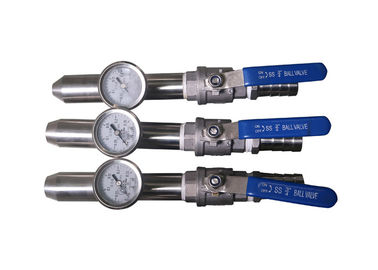

Product information: Test Set consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.



Working principle:

Working principle: The test device simulates that when the test samples suffer water flow as 12.5 +0.625L/min or 100 + 5 L/min in a certain period of time, thus to verify the waterproof performance of the sample’s enclosure.

The test time is calculated according to the sample surface area: 1min/m², but the short test time is not less than 3min.

Ingress Protection Test Equipment



Standard:IEC60529 degree of protection provided by enclosures (IP Code) of the IPX5 and IPX6, IEC60884-1, IEC60335-1, IEC60598-1.

Application:It is used for the testing of IPX5 and IPX6.

Test sample:The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.)

Feature:With pressure gauge, it can be used by replacing the nozzle, it also can match the complete set of waterproof system.



Parameters:



Model HH0804-1 HH0804-2
Item IPX5 IPX6
The nozzle diameter Ф6.3mm Ф12.5mm
Water flow 12.5±0.625L/min,Flow meter is adjustable 100±5 L/min,Flow meter is adjustable
The distance from jet nozzle to enclosure 2.5~3m
Testing time Not less than 1min/m²(not less than 3 mins)
Pressure gauge 0~0.25MPa
Site requirements

Dedicated IP waterproof test room whose width is more than 3m,

With good function of inflow and drainage. Wall installation

Water supply

Water flow rate > 12.5L/min±5% clean water without inclusion.

It can be achieved by the stainless steel water tank and pressurized equipment

Water flow rate >100L/min±5% clean water without inclusion.

It can be achieved by the stainless steel water tank and pressurized equipment

IEC60529 IPX5 IPX6 12.5mm Ingress Protection Test Equipment 0
IEC60529 IPX5 IPX6 12.5mm Ingress Protection Test Equipment 1
IEC60529 IPX5 IPX6 12.5mm Ingress Protection Test Equipment 2
