| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HC9908 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 3 days (in stock) |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 set per month |
| Balancing Arm: | 0-250mm | Test Station: | 1 Station |
|---|---|---|---|
| Test Weight: | 2.5N | Operating Method: | By Manual |
| Distance Between Contact Surface And Axial Surface: | 8mm | Configuration: | Universal Socket (suitable For GB And BS Plugs), Optional UL Socket And Australian Socket. |
IEC60884-1 0-250mm Balance Arm 2.5N Plug Socket Tester Torque Test Device
Standard with IEC Test Equipment:
IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 14.23.2
Standard description with IEC Test Equipment:
The plug socket tester torque test device is inserted into a fixed socket-outlet complying with this standard, the socket-outlet is pivoted about a horizontal axis through the axis of the live socket-contacts at a distance of 8 mm behind the engagement face of the socket-outlet and parallel to this engagement face.
The additional torque which has to be applied to the socket-outlet in order to maintain the engagement face in the vertical plane shall not exceed 0.25 Nm.
Application:
This device is use to test the strain force of insertion. A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets.
Test sample:
Fixed socket-outlet, plug-in equipment.
Feature:
This device has the advantages of good sensitivity, easy adjustment, simple operation and beautiful appearance. Equipped with a variety of socket fixture, strong practicality.
Parameters:
| Distance from the contact surface and the Axis of the surface | 8mm |
| Balancing arm | 0-250mm |
| Weight | 2.5N, can achieve 0.25Nm to 0.4Nm torque force |
| Configure | all-purpose plug(suit for GB and BS plug), UL plug, European plug, one each |

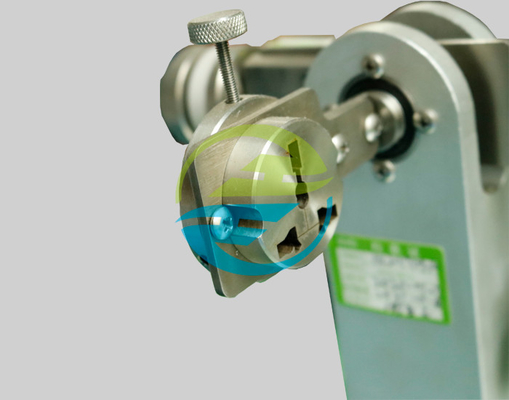

Product details with IEC Test Equipment:
