| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate(cost additional) |
| Model Number: | HJ0636C |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 50 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets per month |
| Product Name: | Refrigerator Door Endurance Testing Equipment | Usage: | Home Appliance Testing Equipment |
|---|---|---|---|
| Standard: | IEC 60335-2-24, IEC 62552 | Driving Mode: | Servo Motor |
| Test Stroke: | 0-100mm | Testing Software: | Software In English |
| Control System: | PLC Programmable Control | Test Stations: | 2 Stations |
| High Light: | Refrigerator Home Appliance Testing Equipment,Door Endurance Home Appliance Testing Equipment |
||

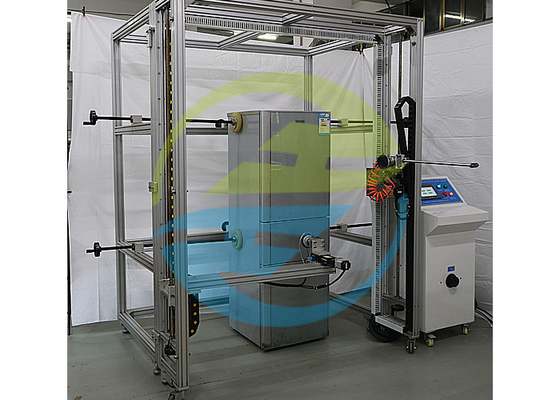

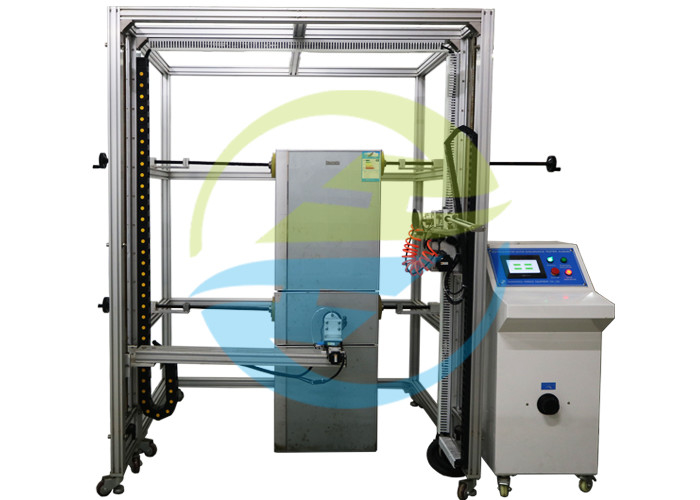

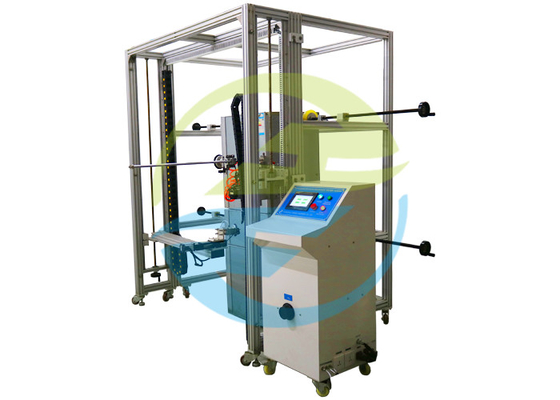

Refrigerator Home Appliance Testing Equipment Door Endurance Test
Description of Refrigerator Door Endurance Testing Equipment:
The Refrigerator Door Endurance Testing Equipment is used to check the durability of the hingesand handles of doors, lids and drawers.
The following measurements can be performed:
Opening and closing external door
Opening and closing external drawer
Standard of Home Appliance Testing Equipment:
IEC 60335-2-24 Household and similar electrical appliances – Safety –Part 2-24: Particular requirements for refrigerating appliances, ice-cream appliances and ice-makers clause 22.112;
IEC 62552:2007 Household refrigerating appliances - Characteristics and test methods clause 11.2 &figure 4, clause 11.3 &figure 5
Feature of Home Appliance Testing Equipment:
The testing equipment used PLC intelligent control system, touch screen humanized operation interface can record and display the test data.
Load output to the tested sample is adjustable and display.
The test times, test speed, test stroke, open / close door pull force can be preset and real-time display on the touch screen.
Parameter of Home Appliance Testing Equipment:
| Item | Parameters |
| Power supply | AC220V±10%/50-60Hz |
| Test stations | 2 stations, refrigerator door test station, refrigerator drawers test station, |
| Operation interface | 7-inch color LCD touch screen |
| Driving mode | Servo motor |
| Control system | PLC programmable control |
| Test times | 0～999999 times, can be preset and displayed |
| Door open /close angle | 0-130°, can be preset |
| Test stroke of open drawers | 0-100mm can be preset |
| Test environment | Atmospheric pressure 80 ~ 106kpa; ambient temperature 5 ~ 40 ° C; relative humidity (20 ~ 80)% RH; use place: no vigorous shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation |
