IEC60335-2-6 Clause 21.102 Vessel For Dropping Test - Hotplates Dropping Aluminum Plate

IEC60335-2-6 Clause 21.102 Vessel For Dropping Test - Hotplates Dropping Aluminum Plate

  • IEC60335-2-6 Clause 21.102 Vessel For Dropping Test - Hotplates Dropping Aluminum Plate
  • IEC60335-2-6 Clause 21.102 Vessel For Dropping Test - Hotplates Dropping Aluminum Plate
  • IEC60335-2-6 Clause 21.102 Vessel For Dropping Test - Hotplates Dropping Aluminum Plate
IEC60335-2-6 Clause 21.102 Vessel For Dropping Test - Hotplates Dropping Aluminum Plate
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HJ0632
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: cartoon box
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 20 set per month
Contact Now
Detailed Product Description
Name: Vessel For Dropping Test Warranty: 1 Year
Usage: Dropping Test Material: Aluminum
Base Flat Diameter: 120mm±10mm Weight: 0.5kg
Edges Rounded: R10 Standard: IEC 60335-2-6, IEC 60335-2-9
High Light:

Clause 21.102 Dropping Test Vessel

,

IEC 60335-2-6 Dropping Test Vessel

,

R10 Aluminum Plate Dropping Test Vessel

IEC60335-2-6 clause 21.102 Vessel For Dropping Test - Hotplates dropping aluminum plate





Standard: This device meets the standard of IEC 60335-2-6 clause 21.102 and IEC60335-2-9 clause 21.101,Household and similar electrical appliances-Safety-Part 2-9:Particular requirements for grills, toasters and similar portable cooking appliances.

Application: It is used for testing the surfaces of hotplates of glass-ceramic or similar material shall withstand the stresses liable to occur in normal use.

Test sample:Hotplates of glass-ceramic or similar material.          Electrical Appliance Tester

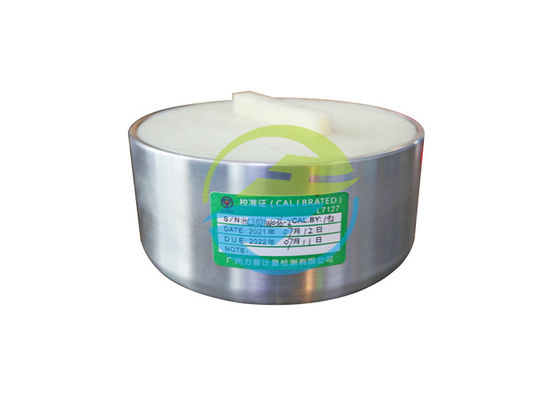

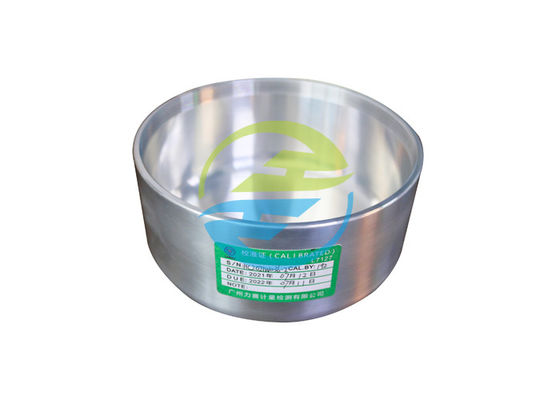

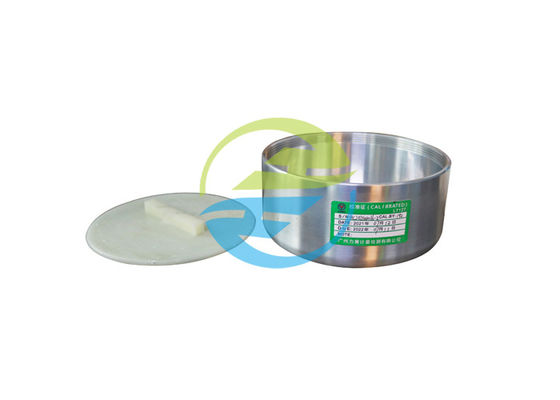

Features:Making of pure aluminum, with lid, prevent sand leakage. The hotplate is operated at rated power input with its control adjusted to the highest setting. Induction hotplates are operated as specified in Clause 11. When steady conditions are established, the hotplate is switched off and a vessel has a copper or aluminum base that is flat over a diameter of 120mm±10mm, its edges being rounded with a radius of at least 10mm. It is uniformly filled with at least 1.3kg of sand or shot so that the total mass is 1.80kg±0.01kg.

The vessel is dropped 10 times onto each cooking zone. It is removed and the appliance is operated at rated power input until steady conditions are established.                Electrical Appliance Tester



Parameters:

Item name Hotplates dropping aluminum plate
Material Aluminum
Base flat diameter 120mm±10mm
Edges rounded R10
Weight 0.5kg            Electrical Appliance Tester
Mass of the sand More than 1.3g (dropping total weight:1.8±0.01kg)
Dropping height 150mm
Dropping times 10

IEC60335-2-6 Clause 21.102 Vessel For Dropping Test - Hotplates Dropping Aluminum Plate 0
