| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HT-I06T |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 3 Days |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/ month |
| Product Name: | Test Probe 2 With Force | Warranty: | 1 Year |
|---|---|---|---|
| Usage: | Water Ingress Protection Test | Standard: | IEC61032 Figure 6 Probe 2、IEC60529 Of IP2 |
| Application: | IP2X | Material: | Stainless Steel, Nylon |
| Steel Ball Diameter: | SФ12.5+0.2 | Force: | 30N |
| High Light: | IEC 60529 Ingress Protection Test Equipment,IP2X Ingress Protection Test Equipment |
||
IEC60529 IP2X Ingress Protection Test Equipment 12.5mm Test Probe 2 With Force of 30N
Standard description:
IEC 60529
13.2 Test conditions for first characteristic numerals 1 , 2, 3, 4
The object probe is pushed against any openings of the enclosure with the force specified in table 7.
|
First character- istic numeral |
Test means (object probes and dust chamber) | Test force |
Test conditions, see |
| 0 | No test required | - | - |
| 1 | Rigid sphere without handle or guard 50+0,05 mm diameter | 50 N ± 10 % | 13.2 |
| 2 |
Rigid sphere without handle or guard 1 2,5+0,2 mm diameter |
30 N ± 10 % | 13.2 |
| 3 | Rigid steel rod 2,5+0,05 mm diameter with edges free from burrs | 3 N ± 10 % | 13.2 |
| 4 | Rigid steel rod 1 ,0+0.05 mm diameter with edges free from burrs | 1 N ± 10 % | 13.2 |
| 5 | Dust chamber figure 2, with or without underpressure | - | 13.4 + 13.5 |
| 6 | Dust chamber figure 2, with under-pressure | - | 13.4 + 13.6 |
13.3 Acceptance conditions for first characteristic numerals 1 , 2, 3, 4
The protection is satisfactory if the full diameter of the probe specified in table 7 does not pass through any opening.
NOTE For first characteristic numerals 3 and 4 the probes specified in table 7 are intended to simulate foreign objects which may be spherical. Where an enclosure has an indirect or tortuous entry path and there is any doubt about ingress of a spherical object capable of motion, it may be necessary to examine drawings or to provide special access for the object probe to be applied with the specified force to the opening(s) where ingress has to be
checked.
Standard:IEC61032 figure 6 probe 2,IEC60529 of IP2.
Application:It is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 12.5mm or greater.
Test sample:Easily accessible enclosure live parts or mechanical parts.
Feature:Steel ball, rigid test.
Parameters:
| Model | HT-I06 | HT-I06T |
| Name | Test probe 2 steel ball | Test probe 2 with force |
| Steel ball diameter | SФ12.5+0.2 0 | SФ12.5+0.2 0 |
| Force | ---- | With force of 30N |
| Applied standard | IEC61032.1 | IEC60529 |

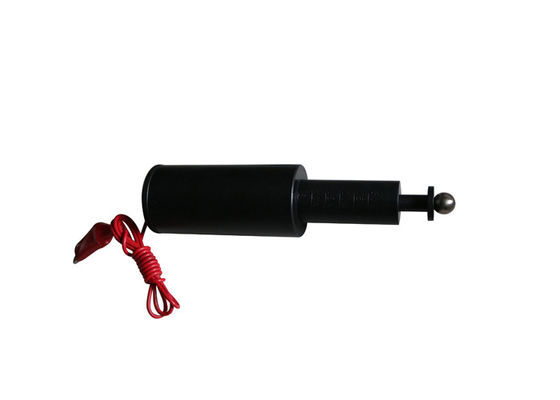

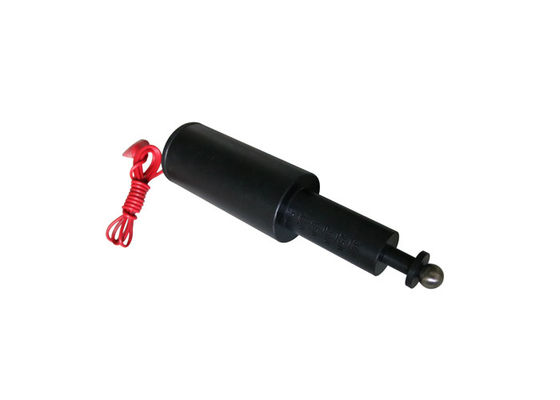

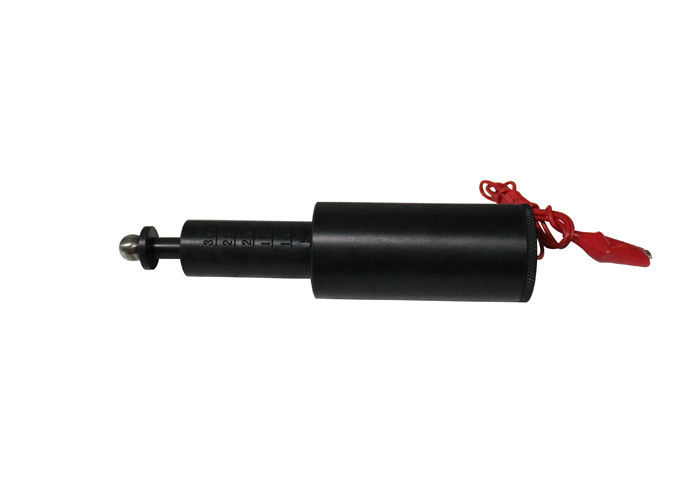

Picture view:
