PLC Control IEC 60335-2-15 Clause 22.103 Electrical Appliance Tester

PLC Control IEC 60335-2-15 Clause 22.103 Electrical Appliance Tester
PLC Control IEC 60335-2-15 Clause 22.103 Electrical Appliance Tester PLC Control IEC 60335-2-15 Clause 22.103 Electrical Appliance Tester PLC Control IEC 60335-2-15 Clause 22.103 Electrical Appliance Tester PLC Control IEC 60335-2-15 Clause 22.103 Electrical Appliance Tester

Large Image :  PLC Control IEC 60335-2-15 Clause 22.103 Electrical Appliance Tester

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate (Cost Additional)
Model Number: HJ0613A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 set /month
Detailed Product Description
Product Name: Cordless Kettle Insert And Withdraw Endurance Tester Usage: Insert And Withdraw Endurance Tester
Warranty: 1 Year Power Supply: 220V 50Hz
Standard: IEC60335 Control: PLC Control, Touch Screen Operation
High Light:

electrical appliance tester

,

portable appliance testing equipment

IEC 60335-2-15 clause 22.103 Electrical Appliance Tester Cordless Kettle Insert And Withdraw Endurance Tester

The Cordless Kettle Insert And Withdraw Endurance tester is designed and manufactured according to the standard IEC60335-2-15 clause 22.103, used to test the service life of base contact for cordless kettles. This device can be preset the number of trials (up to 999999 times), can do load test and non-load test. It can automatically record the numbers of test times and the number of conduction times during the testing, when the actual test times reaches to the preset test times, the device will automatically shut down.



Standard: IEC 60335-2-14 Clause 22.103, IEC60335-2-3 Clause 22.105, IEC60335 -2- 15 clause 22.103 and etc.

Application: Cordless electric kettles, cordless irons, cordless blenders, the contacts shall be constructed so that any electrical or mechanical failure that occurs during normal use shall not be dangerous and shall be verified by a plug-in test.

Test sample: Cordless electric kettles, cordless irons, cordless blenders

Feature: Make the two contacts of cordless electric kettles, cordless irons, cordless blenders to be Short-circuit, and supply 1.1 times of rated voltage to cordless electric kettle/ iron/ blender, then process the endurance test that the test sample’s body insert into and plug from the base at the speed of 10 times/min. And then process a certain times of insert & plug endurance test without load voltage. The test device can be connected to external load or has built-in load (optional), the test cycles can be preset (maximum 999999),the test system can record the test cycles and conduction cycles automatically during test, when the preset test cycles have been completed, the test device will stop testing automatically.



Parameters:

Parameters / Model HJ0613 HJ0613A
Input Power AC220V 50HZ AC220V 50HZ
Control Electrical control, Buttons operation PLC control, touch screen operation
Station Single station Single station
Drive Method motor-driven motor-driven
Test Sample Cordless water kettle Cordless water kettle/iron/blender

Insert & Plug Stroke



100mm 0-100mm,can be preset on touch screen
Insert & Plug Speed 0-30cycles/min, frequency control 0-30 times/min, can be preset on touch screen
Test Cycles 0-999999,can be preset 0-999999,can be preset on touch screen
Conduction Cycles 0-999999,can be displayed 0-999999, can be displayed
Mechanical action insert & plug action insert & plug action and kettle switch open and close movement
Load External 0-250V,0-15A Built-in 0-250V,0-15A
Sample judgment Judge conduction according to the current Judge conduction according to the current
Dimensions and Weight 1000×500×1200mm,130kg 1000×500×1200mm,200kg



Picture for reference:

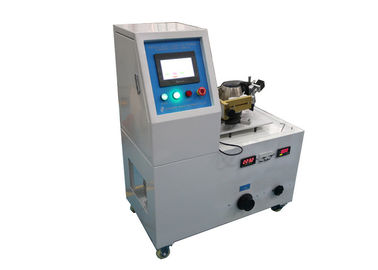

HJ0613

PLC Control IEC 60335-2-15 Clause 22.103 Electrical Appliance Tester 0

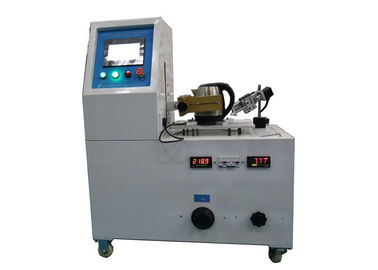

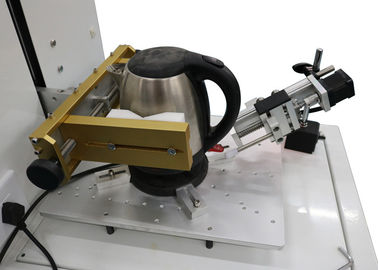

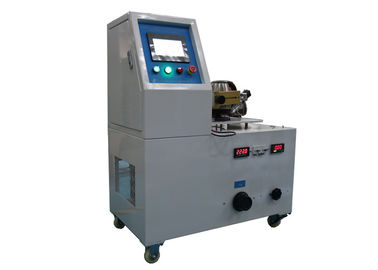

HJ0613A

PLC Control IEC 60335-2-15 Clause 22.103 Electrical Appliance Tester 1

PLC Control IEC 60335-2-15 Clause 22.103 Electrical Appliance Tester 2
