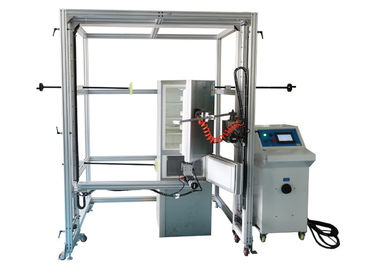

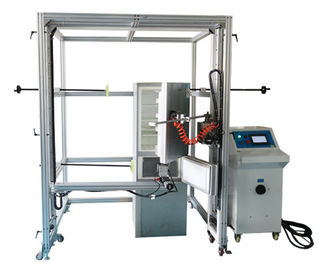

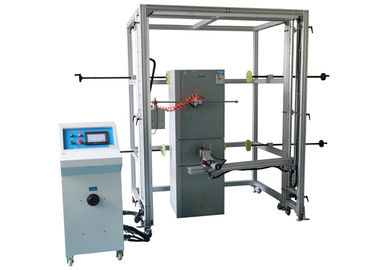

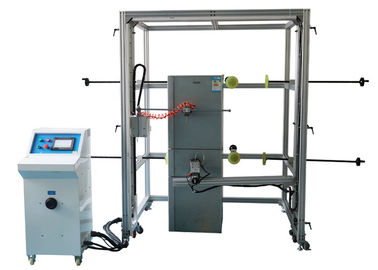

PLC Electrical Appliance Tester Refrigerator Plc Two Open Sides Door Performance And Drawer Endurance Tester IEC 62552

PLC Electrical Appliance Tester Refrigerator Plc Two Open Sides Door Performance And Drawer Endurance Tester IEC 62552

PLC Electrical Appliance Tester Refrigerator Plc Two Open Sides Door Performance And Drawer Endurance Tester IEC 62552
PLC Electrical Appliance Tester Refrigerator Plc Two Open Sides Door Performance And Drawer Endurance Tester IEC 62552

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate (cost additional)
Model Number: HJ0636C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Standard: IEC 60335-2-24,IEC62552 Air Source: 0.5-0.7MPa Compressed Air
Test Station: 1 Stations Electrical Control Method: PLC Intelligent Integrated Control
Drive Mode: Servo Motor Drive Sample Clamping Method: Vacuum Sucker
High Light:

portable appliance testing equipment

,

portable appliance tester

IEC 62552 And IEC 60335-2-24 Refrigerator Plc Two Open Sides Door Performance And Drawer Endurance Tester



Product information:

The integrated door endurance tester is special designed and manufactured as per IEC 60335-2-24 clause 22.112, IEC 62552 clause 11.2,clause 11.3 and etc. Suitable for refrigerator door test. It is a special equipment for durability and structural testing of refrigerator doors.

The equipment adopts advanced PLC intelligent control system, touch screen humanized operation interface to make recording and display more accurate; with preset test times, on current detection, load voltage regulation and display, test speed, test stroke, open / close door pull force setting, pull force transient curve display, test data storage and query, fault alarm and other functions, can be analyzed by the data record whether the test sample is qualified or not. It is the first choice for large metrology institutions and laboratories.

Test Project:

IEC 60335-2-24 clause 22.112

Doors and lids of compartments in appliances test equipment

PLC Electrical Appliance Tester Refrigerator Plc Two Open Sides Door Performance And Drawer Endurance Tester IEC 62552 0

IEC 62552 clause 11.2 ,clause 11.3

Endurance test for doors ,lids and drawers .

PLC Electrical Appliance Tester Refrigerator Plc Two Open Sides Door Performance And Drawer Endurance Tester IEC 62552 1

PLC Electrical Appliance Tester Refrigerator Plc Two Open Sides Door Performance And Drawer Endurance Tester IEC 62552 2

Technical parameters:

Specimen Range, Use, Principle, Structure And Use Environment
Samples And Limitations Refrigerating Appliances (Refrigerator)
Test Purposes It is used for endurance life testing of interlocks or guides for refrigerator doors or drawers to verify the reliability of interlocks; also used to assist other tests for repeated door opening and closing operations, such as defrosting test and refrigerant leak test
Test Principle The motor drives the manipulator, driving the door or cover sucked by the Vacuum sucker to reciprocate at a certain speed, to verify the reliability of interlocking device.
Structure

The equipment is divided into an electrical control cabinet (including load voltage regulator), a frame and a robot arm.

Size:1500×1300×2200(mm)W×D×H

Weight :140kg

Operation Environment

Power supply :AC220V±10%/50-60Hz,power :6KW

Air source :0.5-0.7MPa Compressed air

Place Of Use :Atmospheric pressure 80 ~ 106kpa;Ambient temperature 5~40°C;relative humidity(20~80)%RH;No violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation

Performance
Test Station

Revolving Door Action Position

Drawer action station

Electrical Control Method PLC intelligent integrated control, 7-inch human-machine touch interface operation
Drive Mode Servo motor drive
Sample Clamping Method Vacuum sucker
Open/Close Door Speed

Revolving Door Action:0-360°/s(1.5m/s),can be preset

Drawer action:0-100mm/s, can be preset

Revolving Open Close Door Angle 0-90°,can be preset
Drawer Door Opening Distance 0-100mm,can be preset
Test Times 0-999999 times ,can be preset
Load Voltage 0-250V,adjustable
Test Item And Crafting Process

1. Refrigerator door interlock device endurance test

Process:Vacuum sucker automatic suck the door---- Open the door to a preset angle at a preset speed(45°)---- close the door at preset speed---- Repeatedly open and close the door until reaches the test times

2. Refrigerator drawer door endurance test

Process:Vacuum sucker automatic suck the door---- Open the drawer to the preset distance at a preset speed(15-25mm)----Close drawers at preset speed----Repeatedly open and close the drawer until reaches the test times

Safety Protection Device
Power Leakage protection, overload and short circuit protection
Motor Overload, short circuit protection



PLC Electrical Appliance Tester Refrigerator Plc Two Open Sides Door Performance And Drawer Endurance Tester IEC 62552 3

PLC Electrical Appliance Tester Refrigerator Plc Two Open Sides Door Performance And Drawer Endurance Tester IEC 62552 4
