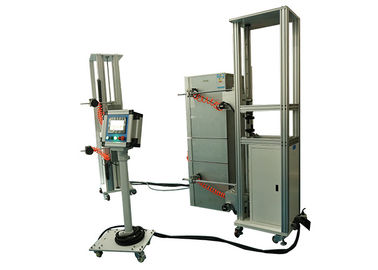

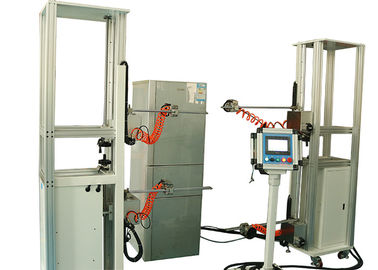

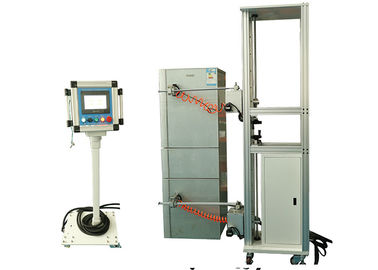

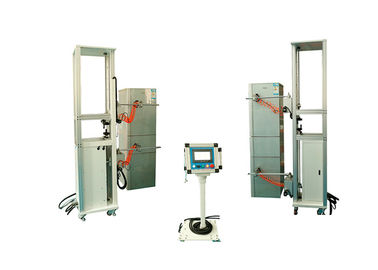

IEC 62552 Electrical Appliance Tester , Refrigerator Door And Drawer 2 Stations Two Open Side Door Endurance Tester

IEC 62552 Electrical Appliance Tester , Refrigerator Door And Drawer 2 Stations Two Open Side Door Endurance Tester

    • IEC 62552 Electrical Appliance Tester , Refrigerator Door And Drawer 2 Stations Two Open Side Door Endurance Tester
    • IEC 62552 Electrical Appliance Tester , Refrigerator Door And Drawer 2 Stations Two Open Side Door Endurance Tester
    • IEC 62552 Electrical Appliance Tester , Refrigerator Door And Drawer 2 Stations Two Open Side Door Endurance Tester
    • IEC 62552 Electrical Appliance Tester , Refrigerator Door And Drawer 2 Stations Two Open Side Door Endurance Tester
  • IEC 62552 Electrical Appliance Tester , Refrigerator Door And Drawer 2 Stations Two Open Side Door Endurance Tester

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Calibration Certificate (Cost Additional)
    Model Number: HJ0636C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Packaging Details: plywood
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 10 set /month
    Contact Now
    Detailed Product Description
    Standard: IEC62552 Control: PLC
    Test Station: 2 Stations Test Times: 0-999999 Times
    Load Voltage: 0-250V,adjustable Control System: PLC Programmable Control

    IEC 62552 Refrigerator Door And Drawer PLC Control 2 Stations Two Open Side Door Endurance Tester

    Product information:

    The integrated door endurance tester is special designed and manufactured as per IEC 60335-2-24 clause 22.112, IEC 62552 clause 11.2,clause 11.3 and etc. Suitable for refrigerator door test. It is a special equipment for durability and structural testing of refrigerator doors.

    The equipment adopts advanced PLC intelligent control system, touch screen humanized operation interface to make recording and display more accurate; with preset test times, on current detection, load voltage regulation and display, test speed, test stroke, open / close door pull force setting, pull force transient curve display, test data storage and query, fault alarm and other functions, can be analyzed by the data record whether the test sample is qualified or not. It is the first choice for large metrology institutions and laboratories.



    Test Project:

    IEC 60335-2-24 clause 22.112

    Doors and lids of compartments in appliances test equipment

    IEC 62552 clause 11.2 ,clause 11.3

    Endurance test for doors ,lids and drawers .



    Technical parameters:



    Specimen Range, Use, Principle, Structure And Use Environment
    Samples And Limitations Refrigerating Appliances (Refrigerator)
    Test Purposes It is used for endurance life testing of interlocks or guides for refrigerator doors or drawers to verify the reliability of interlocks; also used to assist other tests for repeated door opening and closing operations, such as defrosting test and refrigerant leak test
    Test Principle The motor drives the manipulator, driving the door or cover sucked by the Vacuum sucker to reciprocate at a certain speed, to verify the reliability of interlocking device.
    Structure

    The equipment is divided into an electrical control cabinet (including load voltage regulator), a frame and a robot arm.

    Size:1500×1300×2200(mm)W×D×H

    Weight :140kg

    Operation Environment

    Power supply :AC220V±10%/50-60Hz,power :6KW

    Air source :0.5-0.7MPa Compressed air

    Place Of Use :Atmospheric pressure 80 ~ 106kpa;Ambient temperature 5~40°C;relative humidity(20~80)%RH;No violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation

    Performance
    Test Station

    Revolving Door Action Position

    Drawer action station

    Electrical Control Method PLC intelligent integrated control, 7-inch human-machine touch interface operation
    Drive Mode Servo motor drive
    Sample Clamping Method Vacuum sucker
    Open/Close Door Speed

    Revolving Door Action:0-360°/s(1.5m/s),can be preset

    Drawer action:0-100mm/s, can be preset

    Revolving Open Close Door Angle 0-90°,can be preset
    Drawer Door Opening Distance 0-100mm,can be preset
    Test Times 0-999999 times ,can be preset
    Load Voltage 0-250V,adjustable
    Test Item And Crafting Process

    1.  Refrigerator door interlock device endurance test

    Process:Vacuum sucker automatic suck the door---- Open the door to a preset angle at a preset speed(45°)---- close the door at preset speed---- Repeatedly open and close the door until reaches the test times

    2. Refrigerator drawer door endurance test

    Process:Vacuum sucker automatic suck the door---- Open the drawer to the preset distance at a preset speed(15-25mm)----Close drawers at preset speed----Repeatedly open and close the drawer until reaches the test times

    Safety Protection Device
    Power Leakage protection, overload and short circuit protection
    Motor Overload, short circuit protection



    IEC 62552 Electrical Appliance Tester , Refrigerator Door And Drawer 2 Stations Two Open Side Door Endurance Tester

    IEC 62552 Electrical Appliance Tester , Refrigerator Door And Drawer 2 Stations Two Open Side Door Endurance Tester

    IEC 62552 Electrical Appliance Tester , Refrigerator Door And Drawer 2 Stations Two Open Side Door Endurance Tester
