IEC 60065 2014 Test Probe For Verify The Protection Against Access With A Finger

IEC 60065 2014 Test Probe For Verify The Protection Against Access With A Finger

  • IEC 60065 2014 Test Probe For Verify The Protection Against Access With A Finger
  • IEC 60065 2014 Test Probe For Verify The Protection Against Access With A Finger
  • IEC 60065 2014 Test Probe For Verify The Protection Against Access With A Finger
  • IEC 60065 2014 Test Probe For Verify The Protection Against Access With A Finger
IEC 60065 2014 Test Probe For Verify The Protection Against Access With A Finger
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HT-I02T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Aluminum box
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Joint 1: 30±0.2 Joint 2: 60±0.2
Finger Length: 80±0.2 Fingertip To Baffle: 180±0.2
Cylindrical: R2±0.05 Spherical: R4±0.05
High Light:

audio measurement equipment

,

drop test equipment

                                            IEC 60065:2014 clause 9.1.1.3Test probe B



Standard

Conforms to IEC 60065:2014 clause 9.1.1.3, 13.4, IEC 61032 test probe B, figure 2, IEC60950 figure 2A, IEC60884, IEC60335, UL507, and UL1278 figure 8.4.



Application:

This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger.



Test sample:

Easily accessible enclosure live parts or mechanical parts.



Feature:

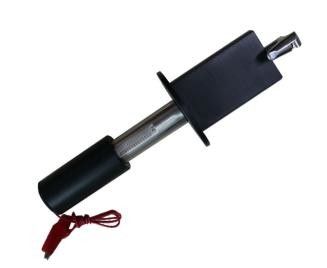

This test finger probe consists of dito, finger, base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°. Customizable: it can be used for anti-electric shock test when equipped with pluggable banana plugs and amphenol connector at the end of the handle , or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).



Parameters(mm):



Model HT-I02 HT-I02A HT-I02B HT-I02T

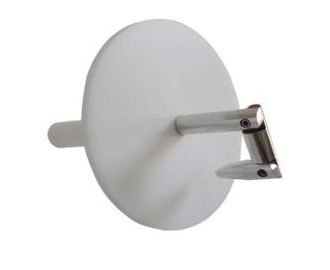

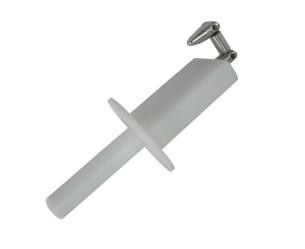

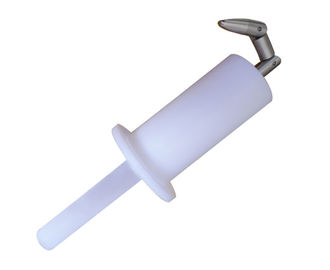

Name Standard Test Finger Circular Baffle Test finger Large Baffle Test Finger Standard Test Finger With Force
Joint 1 30±0.2 30±0.2 30±0.2 30±0.2
Joint 2 60±0.2 60±0.2 60±0.2 60±0.2
Finger length 80±0.2 80±0.2 100±0.2 80±0.2
Fingertip to baffle 180±0.2 180±0.2 ---- 180±0.2
Cylindrical R2±0.05 R2±0.05 R2±0.05 R2±0.05
Spherical R4±0.05 R4±0.05 R4±0.05 R4±0.05
Fingertip cutting bevel angle 37o 0 -10′ 37o 0 -10′ 37o 0 -10′ 37o 0 -10′
Fingertip taper 14 o 0 -10′ 14 o 0 -10′ 14 o 0 -10′ 14 o 0 -10′
Test finger diameter Ф12 0 -0.05 Ф12 0 -0.05 Ф12 0 -0.05 Ф12 0 -0.05
A-A Section diameter Ф50 Ф50 ---- Ф50
A-A Section width 20±0.2 ---- ---- 20±0.2
Baffle diameter Ф75±0.2 Ф75±0.2 Ф125±0.2 Ф75±0.2
Baffle thickness 5±0.5 5±0.5 ---- 5±0.5
Force ---- ---- ---- With force of 10N, 20N,30N
Applied standard IEC61032-1 IEC60335-1 IEC60335-2-14 IEC60529-1



Picture for reference





IEC 60065 2014 Test Probe For Verify The Protection Against Access With A Finger 0
