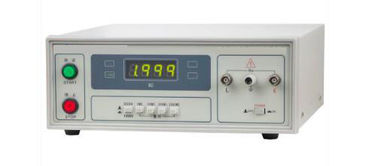

Clause 10.4 Insulation Resistance Tester Test Range From 100kΩ-5TΩ

Clause 10.4 Insulation Resistance Tester Test Range From 100kΩ-5TΩ

  • Clause 10.4 Insulation Resistance Tester Test Range From 100kΩ-5TΩ
Clause 10.4 Insulation Resistance Tester Test Range From 100kΩ-5TΩ
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: RK2682
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Test Range: 100kΩ-5TΩ Test Voltage(V): 10/25/50/100 /250 /500
Voltage Accuracy: ±2% Control Method: Analog Circuit
Range Method: Manual Operation Measuring Velocity: Resistive Element:<0.5 Seconds,Capacitive Element: 0.5~10 Seconds
High Light:

audio measurement equipment

,

drop test equipment

IEC60065:214 clause 10.4 Insulation Resistance Tester



IEC60065:214 clause 10.4 Insulation Resistance Tester Test Range From 100kΩ-5TΩ





Standard:

Confirm to IEC60065:214 clause 10.4, IEC60950, IEC60598, IEC60335-1



Product introduction:

RK2681 series insulation resistance tester is a kind of insulation performance measuring instrument of household appliances, lighting appliances, electric heating appliances, electronic components, dielectric materials, the whole machine and so on. Fast test speed, good stability, convenient operation, and has discriminated function.

The insulation resistance tester of RK2682 type design according to the IEC,BS,UL and other international and domestic requirements of the safety standard, testing is divided into DC500V and DC1000V two files. The insulation resistance is divided into 0.5MΩ~2000MΩ four files (2MΩ,20MΩ,20MΩ,2000MΩ).The instrument is based on absorbing and digesting the international advanced insulation resistance testing instrument and combined with the actual use of many users in our country to improve and refine. We pay more attention to the performance and quality in the price/performance. In terms of price, we pay more attention to the actual purchasing power of many users. It belongs to the lowest price of the product in the domestic same file type.



Application area:

Household Electric Appliances: TV, refrigerator, air conditioner, washing machine, dryer, electric blanket, charger etc.

Insulation material: heat shrinkable tube, capacitor film, high pressure tube, insulating paper, insulated shoes, rubber insulating gloves, PCB circuit board etc.

Instruments and meters: oscilloscope, signal generator, DC power supply, switching power supply and other types of machine.

Lighting appliances: ballast, road lights, stage lights, portable lamps and other types of lamps.

Electric heating appliances: electric drill, pistol drill, cutting machine, grinding machine, electric welding machine etc.

Wire and cable: high voltage cable, optical cable, electric cable, silicone rubber cable, etc.

Motor: Rotating electrical machines, etc.

Office equipment: Computer, Currency Detector, printer, copier, etc.



Performance characteristics:

Easy to operate, reliable performance

With steady voltage automatically function

With undesirable discriminant function

Fast test speed, good stability, easy to operate



Parameters:





Model RK2681 RK2681A RK2682
Test range 100kΩ-5TΩ 100kΩ-10TΩ 500kΩ-2GΩ
Test accuracy

R<10GΩ ±3% indication ±0.5 lattice

R≥10GΩ ±5% indication±0.5 lattice

R≥1TΩ ±10% indication ±0.5 lattice

±5%+2 words
Test voltage(V) 10/25/50/100 /250 /500 10/50/100/250/500 /1000 500 /1000
Voltage accuracy ±2%
Control method Analog circuit Digital circuit
Range method Manual operation
Measuring velocity Resistive element:<0.5 seconds,Capacitive element: 0.5~10 seconds
Sorting Qualified, unqualified, unqualified hearing ring (can be switched)
Work environment 10℃~40℃≤85%RH
Power supply 220V±10%,50Hz/60Hz±5%
Exterior dimension 380×365×135mm 310×270×110mm
Weight 6kg 4.5kg
Accessory Power line, test line
