Touchscreen Glow Wire Flammability Testing Equipment for Plastic & Electrical Components | IEC 60695 Compliant

Brand Name:	HongCe
Model Number:	GW-2
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	5 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Name:

Glow Wire Test Apparatus

Standard:

IEC 60695

Application:

Glow Wire Test

Control Mode Of Operation:

PLC Control

Glowing Filament:

Ф4mm ± 0.04mm

Maximum Depth Of Heating:

7mm ± 0.5mm

Testing Time:

30s±1s

Thermocouple:

Temperature Resistance 1100°

Packaging Details:

Plywood

Highlight:

touchscreen glow wire flammability tester

flammability testing equipment for plastics

IEC 60695 compliant glow wire tester

Product Description

Touchscreen Glow Wire Flammability Testing Equipment

Precision flammability testing solution designed to evaluate the fire resistance of insulating materials, plastics, and electrical components under abnormal thermal stress. Compliant with IEC 60695 standards.

International Reference Standards

This glow wire test equipment assesses plastic materials' ability to withstand heat as part of comprehensive fire hazard evaluation according to IEC 60695 standards:

IEC 60695-2-10 - Glow wire test equipment and general test method
IEC 60695-2-11 - Tests with the glow wire for flammability of end products (GWEPT)
IEC 60695-2-12 - Testing with glow wire for flammability of materials (GWFI)
IEC 60695-2-13 - Tests with the glow wire for the flammability of materials (GWIT)

Applications

Electrical and electronic product safety testing
Plastic material flame resistance evaluation
Appliance certification laboratories
Automotive electrical component testing

Technical Specifications

Parameter	Specification
Model	GW-2 (Touch screen)
Working voltage	220V / 50Hz
Control operation mode	PLC control, 7 inch color touch screen operation, with infrared remote control
Glowing filament	Ф4mm ± 0.04mm (> 77% Ni/20 ± 1% Cr) special standard ring shape, horizontal standing
Specimen pressure on glowing filament	0.95N ± 0.1N
Maximum depth of heating	7mm ± 0.5mm
Specimen movement speed	10mm/s - 25mm/s
Temperature calibration	Calibration temperature: 960°±10°C, hot wire by electric heating
Thermocouple	RS imported 1mm armour nickel-chromium/nickel/nickel aluminum K-Thermocouple, temperature resistance 1100°
Silver foil	Purity 99.8%, area: 2m², thickness: 0.06mm
Tray	A layer of silk paper (12~30g/m³) on 10mm thick pine board, distance of 200±5mm below test sample
Test chamber	>0.5 cube, sample distance from inside of box >100mm, black background, background illuminance ≤20Lx, with exhaust fan
Testing time	30s ± 1s
Test procedure	Automatic sample movement, car returns automatically after glow-wire enters test sample by 7mm
Lighting	Equipped with lighting in test chamber, with control
Dimension	1100×550×1200mm, 140kg

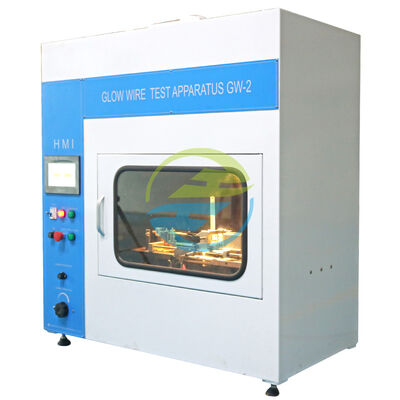

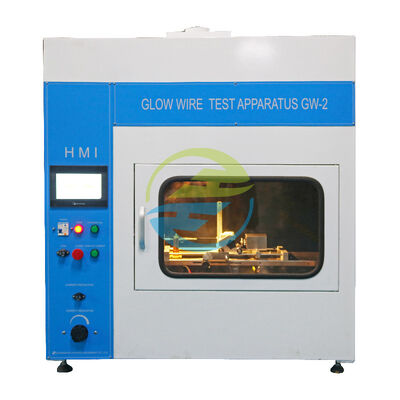

Product Image

Frequently Asked Questions

Is this glow wire tester suitable for certification laboratories?

Yes. The equipment is designed strictly according to IEC 60695 standards and is widely used in third-party labs.

Can the temperature be calibrated?

Yes. The system supports calibration to ensure long-term accuracy.

Do you provide customized voltage or standards?

Absolutely. We support customized power supply, language interface, and regional standards.

How stable is the glow wire temperature during testing?

The heating system ensures rapid stabilization with minimal fluctuation (±1°C).

Are training and guidance provided?

Yes. Operation guidance, test methods, and technical support are included.
