Single Station Inflation Equipment In Accordance With IEC 60068 Inflation Speed 0.5mpa/S

Name: Single Station Inflation Equipment In Accordance With IEC 60068 Inflation Speed 0.5mpa/S
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HJ155
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Hejin
Model Number:	HJ155
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	30 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

Calibration certificate(cost additional)

Packaging Details:

Plywood

Product Description

Single Station Inflation Equipment In Accordance With IEC 60068 Inflation Speed 0.5mpa/S

Product Description

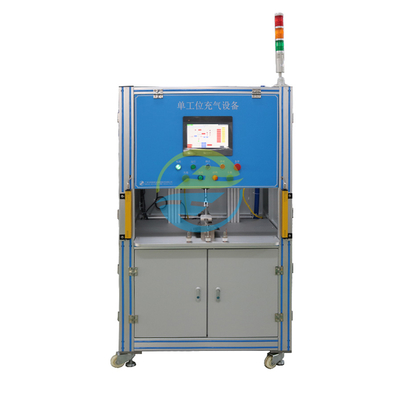

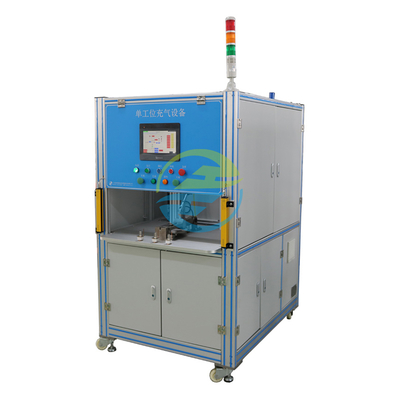

The HJ155 single-station inflation device is a professional instrument for rapid inflation and airtightness testing of relays and small electromechanical products. It utilizes an advanced pressure control system and high-precision sensors to ensure stable and accurate inflation every time. Its compact design and minimal footprint make it suitable for both laboratory testing and batch testing on production lines.

Applications
It is suitable for inflation and airtightness testing of products such as relays, sensors, and electronic valves.
It is widely used in automotive parts, household appliances, and industrial control.
It can be integrated with the Relay Test Bench system to achieve automated testing processes.

Highlights
It complies with the IEC 60068-2-17 international airtightness testing standard, and test results can be used for international certification.
High-precision pressure control (±0.5% FS) ensures consistent inflation.
Modular design allows for easy maintenance and upgrades.
Energy-saving and low-noise performance meet the needs of both laboratories and production workshops.
Supports multiple interfaces for seamless integration into production lines.

International Standards

Standard Number	Standard Name	Applicable Clauses and Description
IEC 60068-2-17	Environmental Testing – Part 2-17: Test Q: Sealing Test	Applicable for evaluating the sealing performance of product enclosures to ensure prevention of gas leakage;
ISO 8573-1	Compressed Air Quality Standard	Ensures the purity of the filling medium, avoiding contamination of the tested product;
ISO 12100	Safety of Machinery – General Principles for Design	The equipment is designed in compliance with safety risk assessment and protection requirements;

Technical Parameters

Parameter Name	Value
Model	HJ155
Number of Stations	Single station
Inflation Pressure Range	0–1.0 MPa (customizable)
Inflation Speed	≤0.5 MPa/s
Pressure Accuracy	±0.5% FS
Test Medium	Helium / Compressed Air / Nitrogen
Control Method	PLC full automatic control

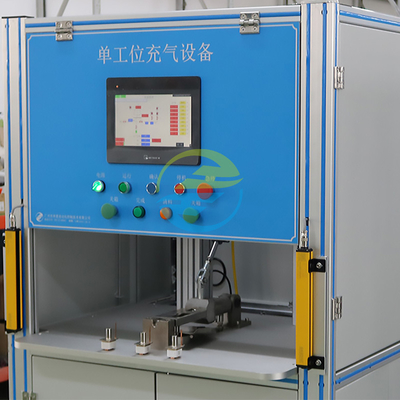

Display Method	7-inch touch screen
Power Supply	AC 220V / 50Hz
Dimensions	600×500×400 mm
Weight	45 kg
Interface Type	Quick connector / Customized interface
