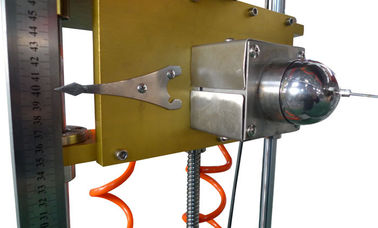

Φ50mm Steel Ball Dropping Impact Testing Machine

Brand Name:	HongTong
Model Number:	SBD-1
MOQ:	1
Price:	Negotiatable
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS

Drop Height:

0.5-1.5m

Impact Steel Ball Size:

Φ50mm

Lift Way:

Electromotion

Packaging Details:

Plywood

Highlight:

impact test machine

pendulum impact testing machine

Product Description

Electromotion Steel Ball Dropping Tester Vertical Drop Impact Testing Equipment

Products introduction:

The steel ball droping tester is designed and manufactured according to IEC60598.1 and IEC60950.1, it meets the standard requirements of the drop impact performance test of the enclosure.

Two impact forms can be achieved through this test apparatus. That is vertical drop impact and swing horizontal impact. It has the advantages of accurate performance and convenient operation as well as reasonable layout.

Main technical parameters:

Item	Parameter
Impact steel ball diameter	Φ50mm
Impact steel ball weight	500±25g
Dropping height	0.5-1.5m is adjustable
Lift way	electromotion
Standard	IEC60598.1 and IEC60950.1
Impact method	vertical drop and wing horizontal impact

Φ50mm Steel Ball Dropping Impact Testing Machine 0

About us:

HongTong Electromechanical Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
