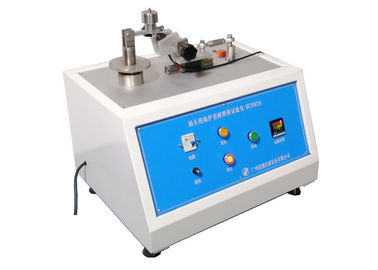

Manual operation Plug Pins IEC 60884 Plug Socket Tester

Manual operation Plug Pins IEC 60884 Plug Socket Tester
Manual operation Plug Pins IEC 60884 Plug Socket Tester Manual operation Plug Pins IEC 60884 Plug Socket Tester Manual operation Plug Pins IEC 60884 Plug Socket Tester Manual operation Plug Pins IEC 60884 Plug Socket Tester

Large Image :  Manual operation Plug Pins IEC 60884 Plug Socket Tester

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HC9926

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detailed Product Description
Test Stations: 1 Station Load: 4N
Test Time: 1-999999 Rate Of Abrasion: 30 Movements Per Minute
High Light:

socket tester

,

electrical plug tester

IEC60884 Plug Socket Tester Abrasion Test On Insulating Sleeves Of Plug Pins Manual operation With 4N Load





Standard:

IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 24.7, figure 28.



Application:

This device is use for test the abrasion resistance strength of insulation sleeve of plug pins.



Test sample:

Insulation Sleeve of plug pins.



Feature:

Device consists of a horizontal placement of the beam and the linear movement of the fixture seat, wherein, beam ends with diameter 1mm short steel wire is bent into a U-shaped head (U shape of two vertical fixed on the beam), wire U-shaped bottom is 6mm linear part. Compress the 6mm hemline on the plug insulation sleeve, the motor drives the mounting bolt clamp seat to do reciprocating movement back and forth, conducting the abrasion test to insulation sleeve of plug pins.



Parameters:

Parameter Name Parameter Data
Power supply AC220V, 50Hz
Station Single station
Test time 1-999999, preset
Rate of abrasion 30±1 movements per minute
Load 4-0.1N
Working stroke 9mm



Manual operation Plug Pins IEC 60884 Plug Socket Tester 0

Manual operation Plug Pins IEC 60884 Plug Socket Tester 1
