Switch Plug Socket Endurance Tester 6 Stations For Rotary Switch Synchronization Control

Switch Plug Socket Endurance Tester 6 Stations For Rotary Switch Synchronization Control

Brand Name:	HongCe
Model Number:	HC9914
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Control System:

PLC Control

Stations:

2 Stations: 3 Liner Stations; 3 Rotating Stations.

Liner Stroke:

0-100mm, Preset

Rotate Angle:

0-360°, Preset

Packaging Details:

Plywood

Highlight:

socket tester

electrical plug tester

Product Description

IEC60884-1 Switch Plug Socket Endurance Tester 6 stations for Rotary Switch Synchronization control

Standard: IEC 60884-1 2013 clause 20, 21, CISPR 14-1, IEC 61058-1, IEC60669-1 etc.

Application: This device is used for household and similar purpose fixed electrical appliance switch, plug and socket, coupler for on-off ability, breaking capacity and normal operation life test. To verify whether the switch, plug or socket can withstand normal use, any mechanical damage or electrical fatigue failure under normal operation, any contact adhesion phenomenon or long term closure or disconnection phenomenon, to test whether excessive wear or other harmful consequences.

Test sample: Household or similar purpose switches, plugs, sockets, couplers

Feature : Using aluminum alloy frame, stainless steel sealing plate, driven by the servo motor, precision ball screw and synchronous belt drive, 7 inch color touch screen operation and powerful digital display function, PLC control system. Can perform lift test to button switch, toggle switch, rocker switch, rotary switch, plug and socket. With corresponding control system, can perform loading test with load(resistive, inductive and capacitive). Preset test times, conduction current time (opening time), test speed, test trip and rotation angle (up to 15 angles). With current display function, can display the conducting current.

Parameters:

Model	HC9914
Power supply	AC 220V±10% 50Hz
Operation interface	7 inch color LCD touch screen
Drive mode	servo motor + ball screw / timing belt or pneumatic
Control system	PLC control
Stations	6 Stations: 3 liner stations; 3 rotating stations. Synchronization control
Test sample	Button switch, rocker switch, toggle switch, rotary switch, plug and socket
Test times	0-999999, preset
Connecting time	0-99.9s, preset
Liner stroke	0-100mm, preset
Rotate angle	0-360°, preset
Test speed	15 times per min 7.5 times per min 30 times per min
Clamp	XYZ three axis clamp
Test mechanism (multi)	Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism
Load ports	6 ports
Dimension Weight	WDH=1090800700mm 147kg

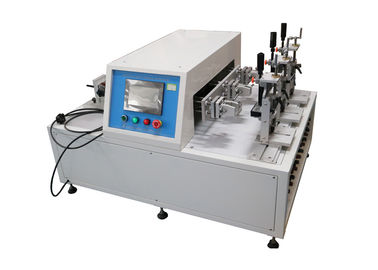

Switch Plug Socket Endurance Tester 6 Stations For Rotary Switch Synchronization Control 0

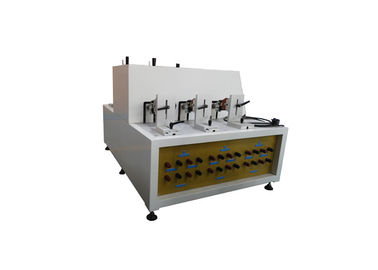

Switch Plug Socket Endurance Tester 6 Stations For Rotary Switch Synchronization Control 1
