Polyvinyl Chloride Insulated Cable Testing Equipment IEC 60227-2 Cord Bending Tester

Polyvinyl Chloride Insulated Cable Testing Equipment IEC 60227-2 Cord Bending Tester

Brand Name:	HongCe
Model Number:	HDX1316
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Standard:

IEC 60227-2 Clause 3.2

Flexing Speed:

10~60times Per Min

Load Weight:

Output Current:

0-1A

Packaging Details:

Plywood

Highlight:

material testing equipment

electric wire tester

Product Description

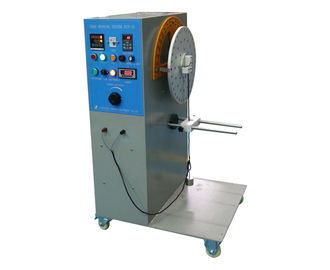

IEC 60227-2 Cord Bending Tester for Polyvinyl Chloride Insulated Cables

The cord bending tester is designed and manufactured according to IEC 60227-1 clause 5.6.3.2, IEC 60227-2 clause 3.2. It is used to checking the power cord flexing(bending) resistance performance. Test object of rated voltages up to and including 450/750V polyvinyl chloride insulated cables.

The test device is easy to operate, can preset the number of test times (up to 999999 times), the test speed and test angle can be adjusted, load current 0-1A stepless adjustable, and with the current conduction detection function. Tester will stop automatically when preset test times completed or detected conduction interrupt, record the tested times and alarm with sound. The equipment is manufactured according to the standard and the sample fixture matches the multiple samples. The utility model has the advantages of beautiful appearance, strong function and high reliability, and is an indispensable equipment for cable manufacturers and laboratory testing.

Technical Parameters:

Item Name	Parameters
Input Power	230V, 50Hz
Work station	1 station

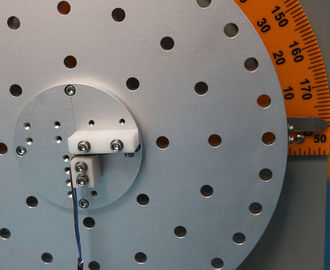

Flexing angle	Each side 45°(90°), 60°(120°), 90°(180°), has a dial for corresponding reference. Default 90°.
Flexing speed rate	10~60times per min, manual adjust
Test times	0~999999 times, can be preset and displayed
Load weights	5N*1
Output voltage	12V
Output current	0-1A

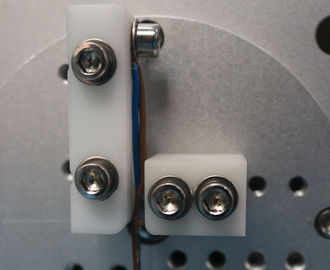

Specimen fixture	Specific fixtures
Conduction detection	The test device is equipped with power supply terminals for the test samples, and it has a conduction detection function, if there is no current go through the test sample, the indicator light turns on, alarm occurs and the test stops, records the real-time test times

IEC 60227-2 Figure 2:

Polyvinyl Chloride Insulated Cable Testing Equipment IEC 60227-2 Cord Bending Tester 0
