IEC 60529 IP Testing Equipment Open Type Water Jetting Test For IPX5 / IPX6

IEC 60529 IP Testing Equipment Open Type Water Jetting Test For IPX5 / IPX6

Brand Name:	HongCe
Model Number:	HC-IPX5/6-600
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate(cost additional)

Standard:

IEC 60529

Product Attribute:

IP Testing Equipment

Application:

IPX5 And IPX6

Test Duration:

At Least 3 Min

Water Pressure:

Adjustable

Nozzle Material:

Stainless Steels

Nozzle Inner Diameter:

6.3 Mm & 12.5 Mm

Water Flow Rate:

IPX5: 12.5 L/min, IPX6: 100 L/min

Packaging Details:

Carton box

Highlight:

IP Testing Equipment

IPX5 IP Testing Equipment

IP Testing Equipment Open Type

Product Description

IP Testing Equipment Open-Type Water Jetting Test for IPX5/ IPX6

Standard of IP Testing Equipment:

IEC 60529: 2013 Degrees of protection provided by enclosures (IP Code)

Application of IP Testing Equipment:

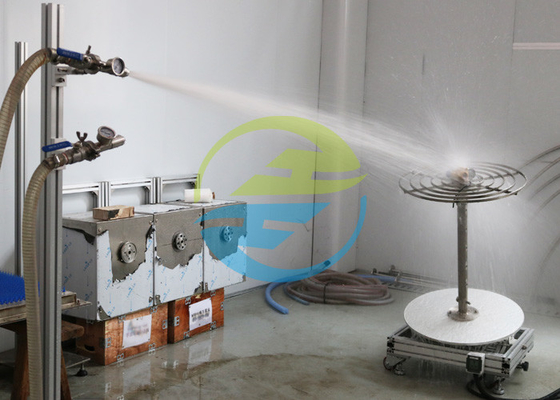

IPX5 / IPX6 / Water Jetting Test equipment is able to project water in jets against the enclosure of the specimen from any direction to determine whether the specimen reaches the specified waterproof level. It can generate different water pressures to meet different testing requirements.

This equipment is suitable for waterproof testing of outdoor lighting, signaling equipment, automotive lamp housings, etc.

Feature of IPX5 / IPX6 Waterproof Test Set-up:

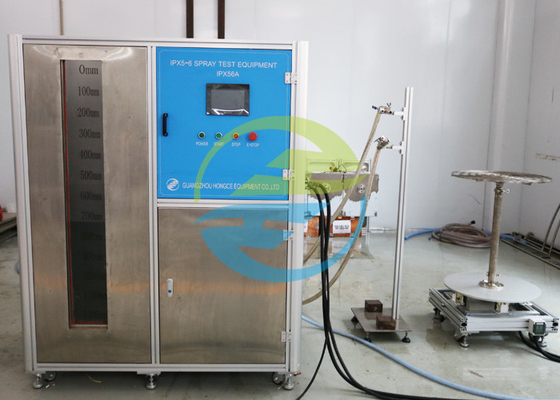

IPX5 / IPX6 / Water Jetting Test equipment a split testing machine, as the nozzle and the sample turntable are separated from the control system and the water tank. The sample mounting is free from space limits and can accept samples with larger dimensions, but it requires a waterproof test site with a drainage system.

Model	HC-IPX5/6-600	HC-IPX5/6-800	HC-IPX5/6-1000
Chamber Dimension (mm)	600 x 600 x 600	800 x 800 x 800	1000 x 1000 x 1000
Nozzle Inner Diameter	6.3 mm diameter for IPX5/6K, 12.5 mm diameter for IPX6
Water Pressure	Adjustable
Water Flow Rate	IPX5: 12.5 L/min, IPX6: 100 L/min, IPX6K: 75 L/min
Turntable Rotating Rate	1~4 r/min
Test Duration	0~9999 min adjustable
Control System	PLC + 7 inch touch screen
Safety Protections	overload, short-circuit, electric leakage, phase failure, ect.
Power supply	3 phase AC380V, 50/60Hz or specified
Optional	Waterproof socket for energized samples

IEC 60529 IP Testing Equipment Open Type Water Jetting Test For IPX5 / IPX6 0
