| Control System: | PLC Control | Stations: | 2 Stations: 3 Liner Stations; 3 Rotating Stations. |
|---|---|---|---|
| Liner Stroke: | 0-100mm, Preset | Rotate Angle: | 0-360°, Preset |
| High Light: | socket tester,electrical plug tester |
||

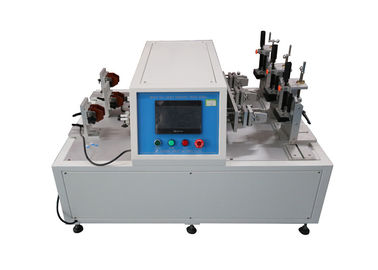

IEC60884-1 Switch Plug Socket Endurance Tester 6 stations for Rotary Switch Synchronization control
Standard: IEC 60884-1 2013 clause 20, 21, CISPR 14-1, IEC 61058-1, IEC60669-1 etc.
Application: This device is used for household and similar purpose fixed electrical appliance switch, plug and socket, coupler for on-off ability, breaking capacity and normal operation life test. To verify whether the switch, plug or socket can withstand normal use, any mechanical damage or electrical fatigue failure under normal operation, any contact adhesion phenomenon or long term closure or disconnection phenomenon, to test whether excessive wear or other harmful consequences.
Test sample: Household or similar purpose switches, plugs, sockets, couplers
Feature: Using aluminum alloy frame, stainless steel sealing plate, driven by the servo motor, precision ball screw and synchronous belt drive, 7 inch color touch screen operation and powerful digital display function, PLC control system. Can perform lift test to button switch, toggle switch, rocker switch, rotary switch, plug and socket. With corresponding control system, can perform loading test with load(resistive, inductive and capacitive). Preset test times, conduction current time (opening time), test speed, test trip and rotation angle (up to 15 angles). With current display function, can display the conducting current.
Parameters:
| Model | HC9914 |
| Power supply | AC 220V±10% 50Hz |
| Operation interface | 7 inch color LCD touch screen |
| Drive mode | servo motor + ball screw / timing belt or pneumatic |
| Control system | PLC control |
| Stations |
6 Stations: 3 liner stations; 3 rotating stations. |
| Test sample | Button switch, rocker switch, toggle switch, rotary switch, plug and socket |
| Test times | 0-999999, preset |
| Connecting time | 0-99.9s, preset |
| Liner stroke | 0-100mm, preset |
| Rotate angle | 0-360°, preset |
| Test speed |
15 times per min 7.5 times per min 30 times per min |
| Clamp | XYZ three axis clamp |
|
Test mechanism (multi) |
Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism |
| Load ports | 6 ports |
|
Dimension Weight |
WDH=1090*800*700mm 147kg |
