Rain Drip Box Ingress Protection Test Equipment Against Water Ingress IPX1 IPX2

Rain Drip Box Ingress Protection Test Equipment Against Water Ingress IPX1 IPX2

    • Rain Drip Box Ingress Protection Test Equipment Against Water Ingress IPX1 IPX2
    • Rain Drip Box Ingress Protection Test Equipment Against Water Ingress IPX1 IPX2
    • Rain Drip Box Ingress Protection Test Equipment Against Water Ingress IPX1 IPX2
  • Rain Drip Box Ingress Protection Test Equipment Against Water Ingress IPX1 IPX2

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Third part calibration certificate(cost additional)
    Model Number: HH0801

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiatable
    Packaging Details: plywood
    Delivery Time: 20 working days
    Payment Terms: T/T
    Supply Ability: 20 set per month
    Contact Now
    Detailed Product Description
    Test Object: Enclosures Standard: IEC 60529, EN 60529
    Test: Protection Against Water Drip Test Size: 1000*600mm
    Drip Height: 200mm Dripping Rate: 1mm/min, 3mm/min
    Distance Between Holes: 20mm Control: PLC Intelligent Control
    High Light:

    waterproof tester

    ,

    material testing equipment

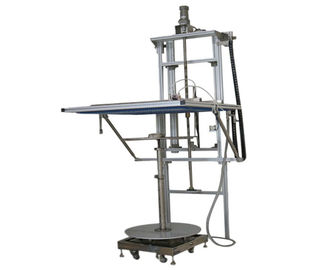

    Vertical Drip Rain Testing Machine HH0801





    Description:

    This is to testing of IPX1 and IPX2 protection aginst water of electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products.

    Confirm to standards:

    IEC 60529 IPX1, IPX2;

    EN 60529 IPX1, IPX2;

    IEC 60598-1;

    IEC 60335-1 and so on.



    Test sample:  The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.).



    Feature:

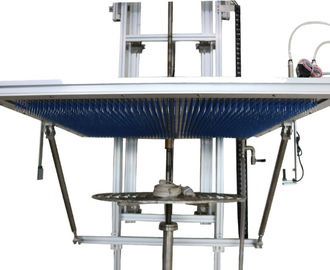

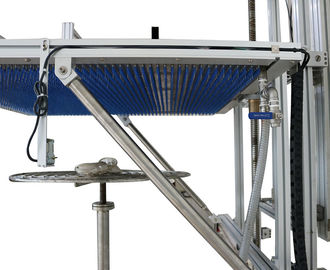

    The rise and fall of the drip box is controlled by the motor. It is equipped with the rotatable objective table whose rotating speed is 1r/min for IPX1 test; It is also equipped with 15°bevel for supporting sample for the IPX2 test. This device is with the clean water filtration unit which can prevent pinhole from jamming, it is controlled by PLC electrical control system, and touch screen operation.



    Technical parameters:

    Model HH0801
    Power supply Single-phase AC220V 50Hz or customize
    Water supply Water flow rate>10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit
    Control and operation PLC intelligent control, 7 inch color touch screen operation
    Testing time 0-999.9min
    Water tank size Outline dimension: WDH=1100×800×350mm, fully enclosed water tank, SUS304 material
    Drip test area 1000×600mm, customizable
    Drip height 200mm, adjustable

    Dripping rate (Water flow)

    1+0.05 0mm/min or 3+0.05 0mm/min switchable, adopt digital controlled rainfall technology
    Needle hole Φ0.4mm
    Distance between holes 20mm
    Rotary table Diameter: Φ600mm; Rotating speed1r/min. Can be paused 150s at four aspects, Load bearing≤150kg electrical equipment
    Supporting sample 15° bevel support
    Water tank lifting drive Motor drive, screw guide rail to ensure the stable lifting and self-locking
    Installation method Wall mounted or floor type
    Site requirements

    Dedicated IP waterproof test room, The ground should be flat with illumination

    10A waterproof leakage switch(or socket) used for equipment. With good function of inflow and drainage. Ground installation
    Area covered WDH =1500mm×1500mm×2650mm, the size can be set according to customer’s requirement
