electrical socket tester,
mechanical switch tester

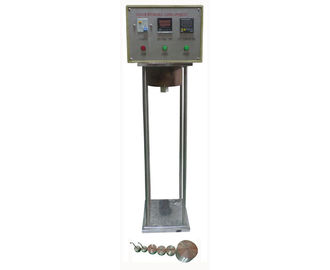

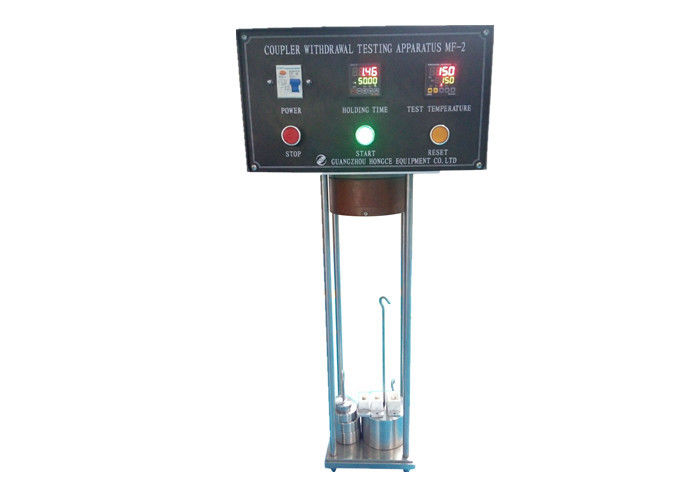

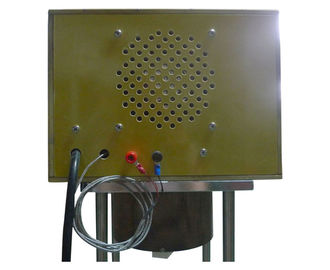

Coupler Withdrawal Testing Apparatus Used To Ascertain The Maximum And Min. Force
Standard:Confirm to the IEC60320-1 clause 16 figure12 standard requirement.
Application:This device is mainly used to ascertain the maximum force necessary to withdraw the connector from the appliance inlet and the minimum force necessary to withdraw a single pin gauge from the appliance inlet, it can also for testing connectors for hot conditions and those for very hot conditions.
Feature:This device consists of a control cabinet, mounting plate, heating device, instrument input socket (standard equip with 10A for testing connectors for hot conditions, 10A and 16A for very hot conditions) hook, and the principle weight,supplementary weight.
The appliance inlet is fixed to the mounting plate A of an apparatus as shown in figure 12, so that the axes of the appliance inlet pin are vertical and the free ends of the pins are downwards. For testing connectors for hot conditions and those for very hot conditions, a heating device C is provided, and on this the appliance inlet is mounted. The principle mass is hung on the connector without jolting and the supplementary mass is allowed to fall from a height of 5 cm on to the principal mass. The connector shall not remain in the appliance inlet. For testing connectors for hot conditions and for very hot conditions, the heating function should be turned on, start testing the maximum withdrawal force after achieving to the temperature.
1. Power supply:220V,50/60HZ.
2. Table 3-Maximum and minimum withdrawal forces
|Type of connector||
|Multi-pin gauge maximum||Single-pin minimum|
|0.2A, 2.5A,6A and 10A||50||1.5|
3. Maximum withdrawal forces
|Maximum withdrawal forces||Principle weight||Supplementary weight|
|Note: The weight hook are included in the weight of 45N.|
4. Minimum withdrawal forces
|Minimum withdrawal forces||Weight|
1.5N weight and 10Alive wire or ground wire of the
2N weight and16Alive wire or ground wire of the
|Note: The weight of the single-pin is included in the corresponding weight|
5.The heating gauge of 10A for testing connectors for hot conditions, 10A and 16A for very hot conditions, others are test gauge in cold conditions, test gauges are optional.
