IEC 60884-1 Safety Test Equipment Plug Socket Switch Breaking Capacity Normal Operation


This series covers all of complete test equipment and system for dimensions, anti electric shocking, temperature rising, structure, normal operating, mechanical strength, cable connection, heat resistance and etc. as per IEC 60884-1. Including plug and socket-outlet gauges, socket-outlet protective probes, wire damage degree test machines, switch and plug-socket endurance testers, load banks, socket-outlet insertion and withdraw testing machines, impact testing apparatus, tumbling barrel test machines, ball pressure devices and etc.

HongCe Test Equipment List As Per IEC 60884-1:2006 ED. 3.1

No. IEC 60884-1 Test Equipment/ Hongce Item Name &Model No. Clause of IEC 60884-1
1 Socket and plug gauges (need to customized according to specific country’s standard) Clause 9
2 Test Probe B HT-I02 Clause 10.1
3 Anti Shock Probe Experiment Device CT-2 Clause 10.1
4 Rigid Test Probe HT-I07 Clause 10.1&13.22
5 Force Gauge AG-500 Clause 10.1&13.22&14.2 and etc.
6 Compression Testing Machine CP-1 Clause 10.1 figure 8, Clause 24.5
7 20N Test Probe HT-I20 Clause 10.5 figure 9
8 1N Test Probe HT-I21 Clause 10.5 figure 10
9 Conductor Damage degree test device CL-1 Clause 12.3.10 figure 11

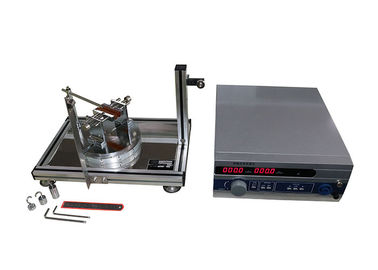

10 Screwless terminals bending and voltage drop measurement device STB-1 Clause 12.3.12 figure 12a & figure 12b
11 Test Apparatus For Lateral Stress LS-1 Clause 14 figure 13
12 Programmable Temperature Humidity Chamber PHT-150 Clause 13.22&13.23&16.1&16.3 and etc.
13 Device for testing Non - solid Pins NP-1 Clause 14.2 figure 14
14 Diameter 4.8 steel probe Clause 14.2
15 Temperature Rising Tester TR-1 Clause 14.23.1, clause 19
16 Plug socket torque tester SOB-1 Clause 14.23.2
17 Circulating Air Oven LH-1 Clause 16.1
18 Test Probes for Protection against access to hazardous parts HT-I01/HT-I02/ HT-I03/ HT-I04 Clause 16.2.1.1
19 Test Probes for Protection against harmful effects due to ingress of solid foreign objects HT-I05/HT-I06/ HT-I03/ HT-I04 Clause 16.2.1.2
20 Sand and dust test chamber DC-3
21 IPX1~IPX8 Water proof degree test system Clause 16.2.2
22 Concealed Mounting Box CMB-1 Clause 19

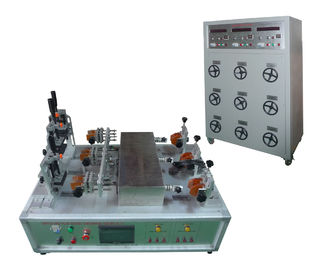

23 Switch And Plug-Socket Endurance Tester SLT-3 Clause 20 &21 figure 16
24 Resistance Inductance Capacitive Load Box HT-LDC Clause 20 &21
25 Apparatus For Verification of Maximum And Minimum Force MF-1

Clause 22.1 &22.2
figure 18&figure 19

26 Apparatus For Testing Cord Retention CR-1 Clause 23.2 figure 20
27 Flexible Cable Torque Tester FCT-1 Clause 23.2
28 Power cord felexibility tester FL-1 Clause 23.4 figure 21
29 Vertical Pendulum Impact Test Apparatus PH-1

Clause 24.1
figure 22&23&24&25&26

30 Test Cylinder TC-1 Clause 24.3
31 Low-Temperature Impact Test Device LTI-1 Clause 24.4 figure 27, clause 30.4 figure 42

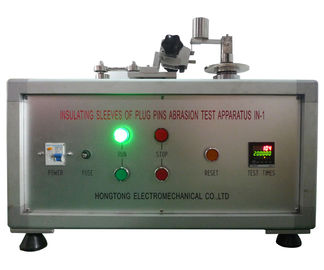

32 Insulation Sleeves of Plug Pins Abrasion Test Apparatus IN-1 Clause 24.7 figure 28
33 Mobile Outlets Mechanical Strength Tester MO-1 Clause 24.9 figure 29
34 Apparatus To Verify The Fixation Of Pins In The Body Of The Plug FP-1 Clause 24.10 figure 30
35 A cylindrical steel rod, having a diameter of 3 mm and a hemispherical end with a radius of 1,5 mm Clause 24.11
36 Measure Gauge For Cover Plate HT-I30 Clause 24.17 figure 32
37 Taper Gauge HT-I31 Clause 24.18 figure 35
38 Heat Resistance Compression Test Device RH-1 Clause 24.19 figure 38, clause 25.4
39 Ball pressure tester BP-1 Clause 25.2 figure 37
40 Creepage distance guages CK-5 Clause 27.1
41 Glow wire tester GW-2 Clause 28.1.1
42 Plug Set Heat Insulation Tester PI-1 Clause 28.1.2 figure 40
43 Tracking leakage tester LT-1 Clause 28.2
44 High Temperature Indentation Device HTI-1 Clause 30.1 figure 41
45 Reference plug (need to customized according to specific country’s standard) Annex C figure C.1
46 A typical apparatus Annex C figure C.2


Laboratory layout reference photos

IEC 60884-1 Safety Test Equipment Plug Socket Switch Breaking Capacity Normal Operation 0 IEC 60884-1 Safety Test Equipment Plug Socket Switch Breaking Capacity Normal Operation 1

Third Party certificates

IEC 60884-1 Safety Test Equipment Plug Socket Switch Breaking Capacity Normal Operation 2 IEC 60884-1 Safety Test Equipment Plug Socket Switch Breaking Capacity Normal Operation 3 IEC 60884-1 Safety Test Equipment Plug Socket Switch Breaking Capacity Normal Operation 4

Factory report

      IEC 60884-1 Safety Test Equipment Plug Socket Switch Breaking Capacity Normal Operation 5    IEC 60884-1 Safety Test Equipment Plug Socket Switch Breaking Capacity Normal Operation 6



Factory view



IEC 60884-1 Safety Test Equipment Plug Socket Switch Breaking Capacity Normal Operation 7



IEC 60884-1 Safety Test Equipment Plug Socket Switch Breaking Capacity Normal Operation 8



IEC 60884-1 Safety Test Equipment Plug Socket Switch Breaking Capacity Normal Operation 9






HongCe adhers to fulfill customer demands as the core, we have supplied our test equipment and solutions to more than thousand domestic and worldwide laboratories, export & import inspection and quarantine bureau, manufacturers and etc. We have won numerous customers’ trust and praise by offering high-quality products and considerate service. We believe that we will win your esteemed company’s recognition through our continuous efforts and pursuit.
