Portable Appliance Laboratory Testing Equipment ISO 4532 With Mechanic Tension Device

Portable Appliance Laboratory Testing Equipment ISO 4532 With Mechanic Tension Device

    • Portable Appliance Laboratory Testing Equipment ISO 4532 With Mechanic Tension Device
    • Portable Appliance Laboratory Testing Equipment ISO 4532 With Mechanic Tension Device
    • Portable Appliance Laboratory Testing Equipment ISO 4532 With Mechanic Tension Device
    • Portable Appliance Laboratory Testing Equipment ISO 4532 With Mechanic Tension Device
    • Portable Appliance Laboratory Testing Equipment ISO 4532 With Mechanic Tension Device
    • Portable Appliance Laboratory Testing Equipment ISO 4532 With Mechanic Tension Device
  • Portable Appliance Laboratory Testing Equipment ISO 4532 With Mechanic Tension Device

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
    Model Number: VPP-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiatable
    Packaging Details: Plywood
    Delivery Time: 25 days
    Payment Terms: T/T, D/A, D/P, T/T, Western Union
    Supply Ability: 15 set per month
    Contact Now
    Detailed Product Description
    Standard: ISO 4532 Type: Portable Handheld
    Adjustable: From 0~90 N/cm Minimum Speed: Precisely To 0.5 N/cm
    Usage: Judge The Impact Resistance Of The Vitreous And Porcelain Enamels Advantage: Convenience For Packing
    High Light:

    iec testing equipment

    ,

    iec tester

    Portable Appliance Laboratory Testing Equipment ISO 4532 With Mechanic Tension Device





    Product details:



    This tester is for the pistol test of vitreous and porcelain enamels in accordance with the standard requirement of ISO 4532. It is used to judge the impact resistance of the vitreous and porcelain enamels.

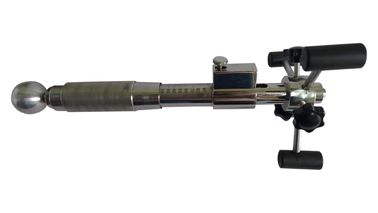

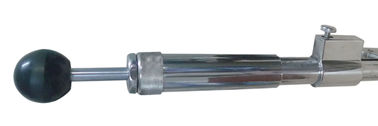

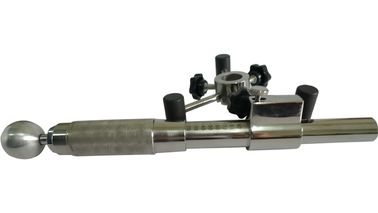

    As the below picture shown, this test apparatus is made up with a striking bolt with a 5 mm steel ball tip which is shot once against the surface under test by means of a pressure spring (100 mm long, unloaded)

    This device is a portable handheld apparatus which can be stored in any suitcase. Thus avoid the inconvenience of disassembly and transportation. It can be used outside of the laboratory and workshop. It is suitable for factory production management testing. This mechanical equipment can be continuously adjusted from 0~90 N/cm. And the minimum speed can be adjusted precisely to 0.5 N/cm. Combined with custom design A-frame, this device is not only for the test of the samples’ surface but also for

    the samples’ edge.



    Technical Parameter:

    Length of the instrument 245 mm
    Measuring range 0-90 N continuously adjustable
    Tension device Mechanic
    Ball diameter 5 mm steel ball
    Trigger Mechanic
    Net weight About 340 g



    Portable Appliance Laboratory Testing Equipment ISO 4532 With Mechanic Tension Device 0



    Portable Appliance Laboratory Testing Equipment ISO 4532 With Mechanic Tension Device 1
