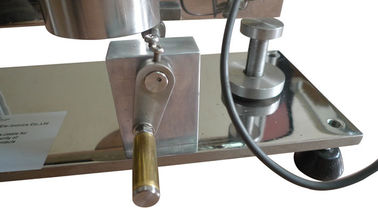

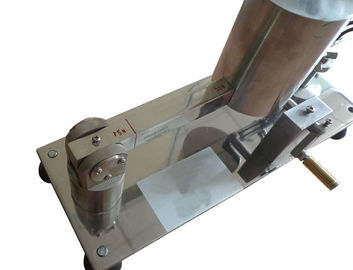

Lampholder Copper Contacts Security Thrust Test Device IEC60598-2-20

Lampholder Copper Contacts Security Thrust Test Device IEC60598-2-20

    • Lampholder Copper Contacts Security Thrust Test Device IEC60598-2-20
    • Lampholder Copper Contacts Security Thrust Test Device IEC60598-2-20
    • Lampholder Copper Contacts Security Thrust Test Device IEC60598-2-20
    • Lampholder Copper Contacts Security Thrust Test Device IEC60598-2-20
    • Lampholder Copper Contacts Security Thrust Test Device IEC60598-2-20
  • Lampholder Copper Contacts Security Thrust Test Device IEC60598-2-20

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: CNAS、TUV、ITS、CSA、BV、SGS(cost additional)
    Model Number: TLC-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiatable
    Packaging Details: Plywood
    Delivery Time: 25 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 25 set per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Standard: IEC60598-2-20 Fig 2
    Weights: 15N And 30N
    High Light:

    led light tester

    ,

    luminaire testing

    IEC60598-2-20 Lampholder Copper Contacts Security Thrust Test Device





    Product information:

    The test apparatus is used to check security of lampholder contacts, avoid the lamp holder contacts shifting and the live parts of the lamp string becoming accessible which are caused by the frictions.



    Technical parameters:



    The test device is conform to the IEC60598-2-20 clause 113,Fig 2.

    It is made of stainless steel.

    Weights: one 15 N and one 30 N



    Test method:

    The incandescent lamp is removed and a force of 15 N is applied for 1 min to each of the conductors connected. Following this, a force of 30 N is applied for 1 min to the two conductors together. The forces are applied at a distance of 3 ± 0,8 mm  from the insertion points in the lampholder so as to try to move the contacts from the lampholders. During the test the contacts shall not move more than 0,8 mm.



    Lampholder Copper Contacts Security Thrust Test Device IEC60598-2-20 0
