| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | TUV、ITS、CSA、BV、SGS 、CNAS(cost additional) |
| Model Number: | LT-2A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 15 set per month |
| Standard: | IEC60112 | Electrode Material: | Platinum And Brass |
|---|---|---|---|
| Electrode Angle: | 60°±5° | Electrode Distance: | (4±0.1㎜) |
| Dropping Liquid Height: | 35±5mm | ||
| High Light: | iec tester,laboratory test equipment |
||

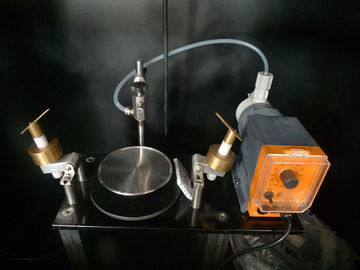

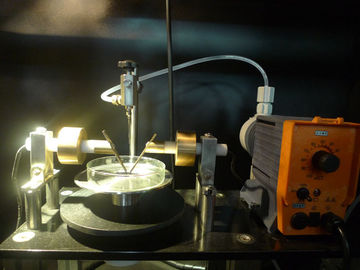

Automated IEC60335-1 Lab Test Equipment CTI PTI Material Insulation
Product information:
We have designed a series of leakage tracking test apparatus for solid insulating materials, the new version one has a additional pressure / frequency regulator , thus , the test equipment can control the water dripping speed and time much more accurately.
This tester is designed and manufactured according to the standard requirement of IEC60112,IEC60695, IEC60335-1,IEC60598-1,UL746A and ASTM D3638-92 and etc..
HongTong has a strong ability in R&D, we have many sucessful cases with offering our proposals and test equipment that achieved our customer's special testing requirements. You are welcome here, if you have any inquries about test equipment.
Technical parameters :
|
Parameter model |
LT-2A(0.5m³) |
| Control | Meter |
| Display | Digital |
|
Working voltage |
220V/50Hz or 110V/60HZ |
|
Testing voltage |
0～600V adjustable,precision 1.5％ |
|
Timing device |
9999X0.1S |
|
Electrode |
Platinum electrode and brass electrode each for a pair |
|
Electrode dimension |
(5±0.1)×(2±0.1)×(≥12)㎜, 30°slant |
|
Electrode included angle and distance |
60°±5°,distance is (4±0.1㎜) |
|
Electrode pressure |
1.00N±0.05N(digital display is optional) |
|
The interval of dropping liquid |
30±5S,adjustable |
|
Dropping liquid height |
35±5mm |
|
Dropping liquid delay |
0.2S(solenoid valve opening time) |
|
Dropping liquid size |
45～50 drip/cm3 |
|
Time-delay circuit |
2±0.1S(in 0.5A or larger current) |
|
Short-circuit pressure drop |
8% MAX |
|
Short-circuit current |
1±0.1A 1％ |
|
Wind speed |
0.2m/s |

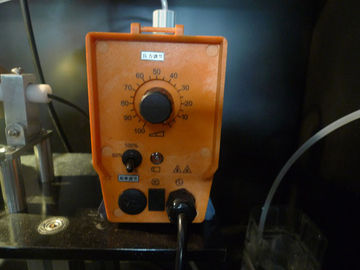

| With a pressure / frequency regulator, can adjust the dripping pressure and frequency | |
|
Environmental requirement |
0～40℃,relative humidity≤80%,in the place of no obvious vibration and corrosive gas |
|
conforms to standard |
IEC60695, IEC60112,IEC60335-1,IEC60598-1,UL746A and ASTM D3638-92 |
Other versions (Pictures for reference):
LT-1 (0.1m³)
LT-2 (0.5m³)
LT-3 (0.5m³ PLC Touch Screen Version)
