| Product Name: | Electrodynamic Vibration Test System | Tested Product: | Battery |
|---|---|---|---|
| Frequency Range: | 1～3000 Hz | Maximum Displacemen: | 76mm |
| Rated Sinusoidal Force: | 3000kgf （30kN) | Vertical Table: | 1500mm×1500mm (customisable) |
| Horizontal Table: | 1500mm×1500mm (customisable) | Fan Power: | 7.5KW |
| High Light: | IEC 62133 Battery Testing Equipment,Electric Vibration Battery Testing Equipment |
||
Electric Vibration Testing System IEC 62133 Battery Testing Equipment
Application of Battery Testing Equipment:
Vibration encountered of the battery during transportation shall not cause leakage, fire or explosion. The electrodynamic vibration test system is a precision test equipment that simulates the actual working environment of a battery.

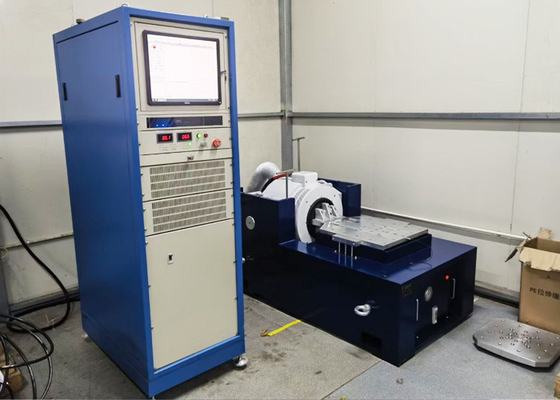

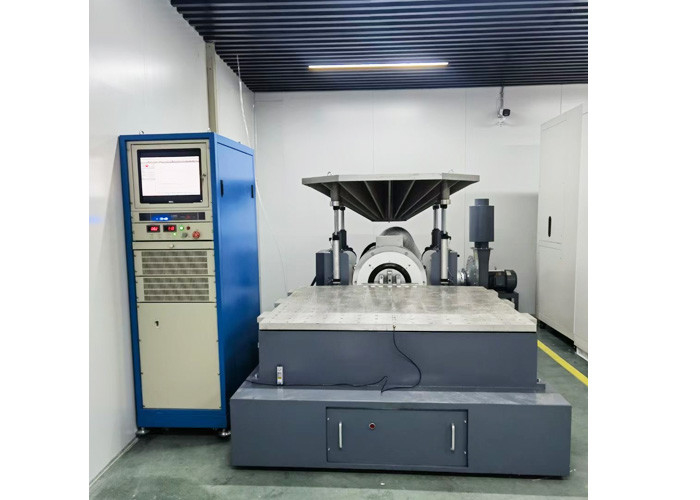

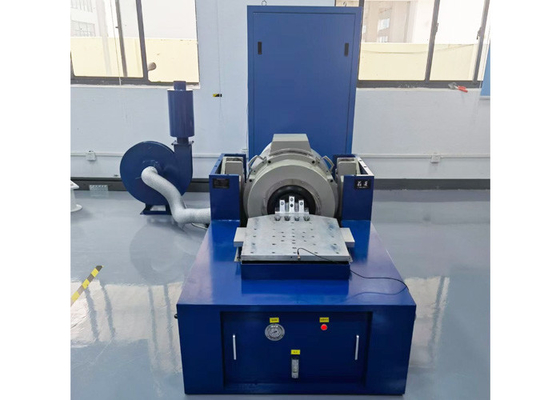

The vibration test system consists of four parts: vibration test bench, power amplifier, controller and cooling fan.
Standard of Battery Testing Equipment:
IEC 62133-1 Secondary cells and batteries containing alkaline or other non-acid electrolytes -Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications - Part 1:Nickel systems clause 7.2.2;
UN38.3 T3:Vibration
Parameter of Battery Testing Equipment:
| Electric Vibration Test bench | |
| Rated sinusoidal force (peak) | 3000kgf (30kN) |
| Rated random force (peak) | 3000kgf (30kN) |
| Rated shock force (peak) | 6000kgf (60kN) |
| Frequency range | 1～3000 Hz |
| Maximum displacement (p-p) | 76mm |
| Maximum Acceleration | 980m/s2 (100g) |
| Maximum load | 500 kg |
| Table diameter | Ф320mm |
| Equivalent mass of moving parts | 30kg |
| Table screw | 12×M12 |
| Dimension L×W×H | 1940×1640×1100mm |
| Weight | About 3100kg |
| Power Amplifier | |
| Amplifier Output | 35KVA |
| Output Voltage | 120Vrms |
| Signal to Noise Ratio | >65dB |
| Power Amplifier Efficiency | ＞95% |
| System Protection | Temperature protection, over-displacement protection, over-voltage protection, over-current protection, under-voltage protection, external protection, logic fault protection |
| Dimensions | 580×1020×1800mm |
| Weight | 600kg |
| Vertical extension table | |
| Table Size | 1500mm×1500mm |
| Table Weight | 350kg |
| Highest frequency | 200Hz |
| Material | Aluminium alloy |
| Horizontal Slide Table | |
| Table Size | 1500mm×1500mm |
| Table Weight | 350kg |
| Highest frequency | 200Hz |
| Material | Aluminium alloy |
| Vibration controller | |
|
Functions Based on Windows 7 operating system |
Basic functions: Sine, Random, Random+Sine, Random+Random, Typical Shock, Resonance Search and Dwell, Transient Shock, Shock Response Spectrum. 2 input channels, 1 output channel, 1 COLA output, reserved with the environmental test chamber linkage interface function (digital I / O interface) |
| Fan | |
| Fan Power | 7.5KW |
| Air volume | 0.52M3/s |
| Wind Pressure | 5.8Kpa |
| Dimensions | 1100*800*1400mm |
| Duct length | 4m |
| Weight | 140kg |
| Accelerometer | |
| Frequency Range | 0.3-8000Hz±10% |
| Measuring Range | 2000g |
| Impact Resistance | 2500g |
| Line length | 5m |
| Operating Temperature | -40-150℃ |
| Weight | 35Gram |
| Installation Method | M5 |
