| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | calibration certificate (cost additional) |
| Model Number: | HH0802 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set /month |
| Standard: | IEC60529, IEC 60335-1 And Etc | Warranty: | 1 Year |
|---|---|---|---|
| Control: | PLC Intelligent Control | Needle Hole: | Φ0.4mm |
| Turntable Diameter: | 600mm | Included Angle Of Two Holes: | IPX3: 120°; IPX4: 180° |
| Tube Radius: | 200~1600mm | Water Flow: | 1-10L/min Adjustable |
| High Light: | Splashing Water IP Testing Equipment,R800 Oscillating Tube IP Testing Equipment |
||

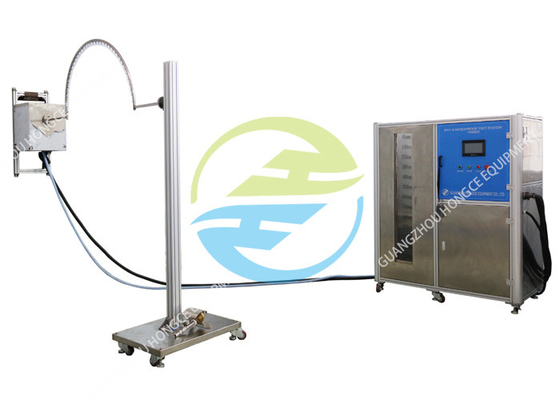

IPX3/IPX4 Spraying And Splashing Water IP Testing Equipment R800 Oscillating Tube
Standard of IP Testing Equipment:
IEC 60529: 2013 Degrees of protection provided by enclosures (IP Code)
Application:

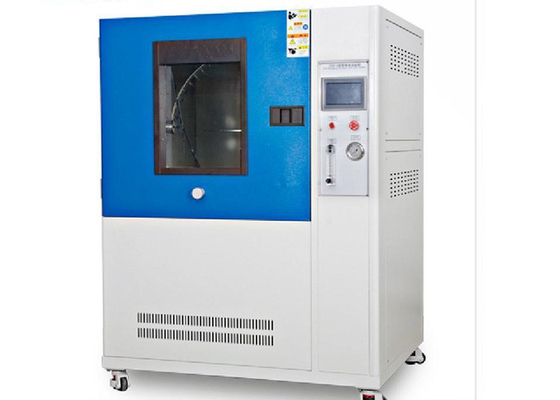

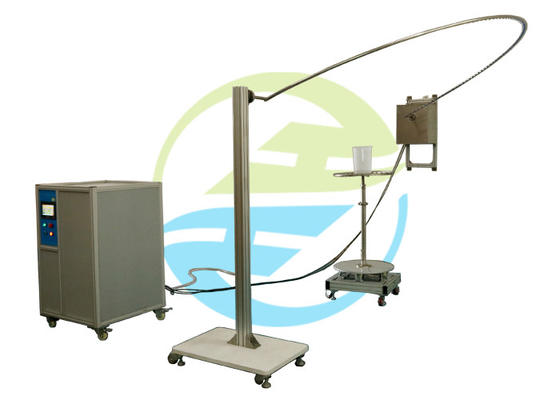

Test for second characteristic numeral 3 & 4 with oscillating tube. We offer chamber type and open type for IPX3/4 spraying and splashing test equipment.
Feature of IP Testing Equipment:
The total flow rate is adjusted and is measured with a flow meter.
The oscillating tube is provided with spray holes over an arc of 60° either side of the centre point.
The enclosure to be tested is placed at the centre point of the semicircle. The tube is caused to oscillate through an angle of 120°, 60° on either side of the vertical, the time for one complete oscillation (2 × 120°) being about 4 s and the test duration being 5 min.
The enclosure is then turned through an horizontal angle of 90° and the test is continued for a further 5 min.
The maximum acceptable radius of the oscillating tube is 1600mm.
Parameter of IP Testing Equipment:
| Item | Parameters |
| Input power | Single-phase AC220V,50Hz |
| Water supply |
Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |
| Control and operation | PLC intelligent control, 7 inch color touch screen operation |
| The size of the oscillating tube | R200 ,R400,R600,R800,R1000,R1200,R1400,R1600mm. Optional,stainless steel |
| Needle hole | Φ0.4mm |
| Included angle of two holes | IPX3:120°； IPX4:180° |
| Pendulum angle | IPX3:120°(±60°)； IPX4:350°(±175°) |
| Raining speed |
IPX3:4 s/time(2×120°)； IPX4:12 s/time(2×350°)； |
| Water flow | 1-10L/min adjustable |
| Testing time | 0.01S～99hours 59min,can be preset |
| Rotary plate | Diameter:Φ600mm；Rotate speed:1r/min,Can be paused at four aspects, Load bearing≤50㎏electrical equipment |
| Site requirements |
Dedicated IP waterproof test room,The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation |
| Area covered | It is set according to the selected oscillating tube |
