    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: CNAS
    Model Number: SLT-5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiatable
    Packaging Details: Plywood
    Delivery Time: 30 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Contact Now
    Detailed Product Description
    Work Station: 5 Drive Mode: Servo Motor
    Operation Interface: 7 Inch Color LCD Touch Screen Control System: PLC, Brand : Mitsubishi

    Automotive Car Switches Endurance Durability Test Equipment





    Product information



    The test apparatus is designed and manufactured according to IEC60884-1, IEC61058-1,

    IEC60669-1standards and etc. It is applicable for switches (≤50A) breaking capacity and normal operation life test of household and similar fixed electrical installation electrical device. The purpose is assessing whether the switch is able to withstand the normal use of mechanical damage and electrical fatigue damage, and whether the contact points has adhesion phenomenon, long-term closed or disconnected phenomena, to examine whether the test samples excessive worn and have other harmful consequences. It is special test equipment for automotive switches electrical endurance test.



    Technical parameters



    Parameters Name

    Parameter Data

    Power

    AC110V, 60Hz or 220V, 60Hz

    Work station

    5 work stations, three linear stations, three rotary station

    Operation interface

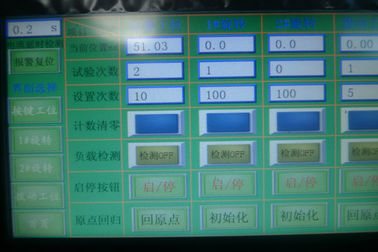

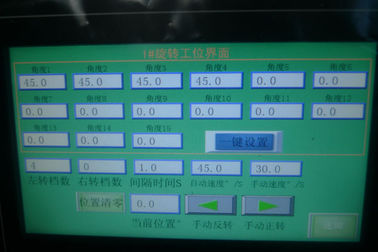

    7 inch color LCD touch screen

    Drive mode

    Servo motor

    Control system

    PLC, brand : Mitsubishi

    Test times

    0~999999 times, can be preset

    Conduction time

    0~999.9s, can be preset

    Break time

    0~999.9s, can be preset

    Test  angle

    0-360°,  can be preset

    Test stroke

    Rotary switch : 1~359°, adjustable

    Toggle switches: 0~100mm, adjustable

    Button switch:0~150mm, adjustable

    Test speed

    Rotary switch : 1~359°/s, adjustable

    Toggle switches: 0~100mm/s, adjustable

    Button switch:0~150mm/s, adjustable

    Test environment

    Atmospheric pressure 80 ~ 106kpa;

    Ambient temperature 5 ~ 40℃; Relative humidity (20 ~ 90)%RH;

    Use place: no violent shaking, no vibration,

    no electromagnetic interference, no dust,

    noexplosive or corrosive gas, good heat dissipation

    Dimensions

    L*W*H=1800mmx720mmx700mm

    Weight

    150KG

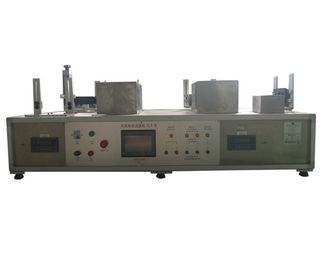

    Endurance Switch Tester

    We can offer OEM service and best solution to meet our customers' testing requirements, you are welcome here if there is any inquires, we will be at your service!
