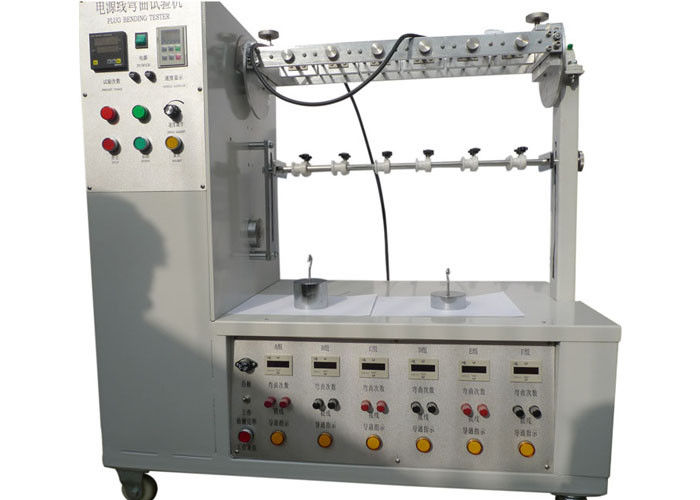

Plug Cord Compression Testing Machine / Flexing Test Swivel Machine

    • Plug Cord Compression Testing Machine / Flexing Test Swivel Machine
    • Plug Cord Compression Testing Machine / Flexing Test Swivel Machine
    • Plug Cord Compression Testing Machine / Flexing Test Swivel Machine
    • Plug Cord Compression Testing Machine / Flexing Test Swivel Machine
  • Plug Cord Compression Testing Machine / Flexing Test Swivel Machine

    Product Details:

    Place of Origin: China
    Brand Name: HongTong
    Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
    Model Number: FL-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Plywood
    Delivery Time: 25 days
    Payment Terms: T/T
    Supply Ability: 15 set per month
    Contact Now
    Detailed Product Description
    No. Of Flex Per Test: 1-999999 (selectable) No. Of Test Station: 6 Stations
    Rate Of Flexing: 10~60 Times/min Flexing Angle: 45° , 60°, Or 90°(or 180°)

    Flexing Test Swivel Machine ,  Plug Cord Flexibility Tester IEC60884-1 Figure 21





    Product details:

    The FL-1 Plug Cord Flexibility Tester is designed and manufactured according to the standard requirement of IEC 60884-1 figure 21 which calls for 10,000 flexing at a rate of 60 flexing per minute. Six cables or cords fitted with plugs can be tested simultaneously. The cables are connected to a socket and the tail of the cable is connected to the tester to detect if an internal fault occurs with the cable wiring or accessory connection. The instrument starts in a vertical orientation and then flexes the specimens 45° on either side of the vertical for a total 90° of flexing. A standard rate of 60 flexing per minute is used but a slower rate can be selected if desired.
    A set of customer selected weights are included with the instrument so that the proper force can be applied to the cable during the test.



    Technical parameters:

     Power Supply

    220V 50Hz or 115V 60Hz

    Number of Flex Per Test

    1-999999 (selectable)

    Number of Test Station

    6, with 6 sets of clamp device

    Rate of Flexing

    10~60 times/min(selectable) individual counts for each station

    Flexing Angle

    Swivel angle on either side for 45° , 60°, or 90°(or 180°)(selectable)

    Weight

    10N/20N*6(the weight of UL113g and 284g can be customized)

    Dimensions

    W*L*H=500mm *1000mm* 1100mm

    Conforms to standard

    IEC884-1 Figure 21 and clause 23.4,IEC320-1,VDE0620

    Mechanical theory

    The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action.



    Using method:

    Set up the testing sample on the swing fixture and conduct the circuit. In the other side, the according weight is used, then set the flexing angle and testing times as well as the required speed. Then start the equipment. When the sample is broken off, the corresponding counter stops working and the indicator light off. At that time, the counter displayed is the testing times of the samples. When the total testing times are reached, the equipment will stop working.

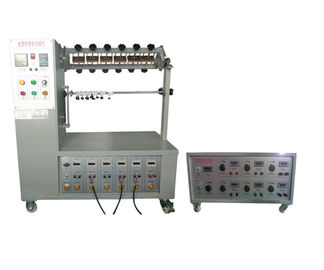

    This testing machine can be connected with Load of power line tester for the load test.

    Plug Cord Compression Testing Machine / Flexing Test Swivel Machine



    Plug Cord Compression Testing Machine / Flexing Test Swivel Machine
