IEC60335 / IEC60950 / IEC 61032 :Test Finger Probe

IEC60335 / IEC60950 / IEC 61032 :Test Finger Probe

    • IEC60335 / IEC60950 / IEC 61032 :Test Finger Probe
    • IEC60335 / IEC60950 / IEC 61032 :Test Finger Probe
    • IEC60335 / IEC60950 / IEC 61032 :Test Finger Probe
    • IEC60335 / IEC60950 / IEC 61032 :Test Finger Probe
    • IEC60335 / IEC60950 / IEC 61032 :Test Finger Probe
    • IEC60335 / IEC60950 / IEC 61032 :Test Finger Probe
    • IEC60335 / IEC60950 / IEC 61032 :Test Finger Probe
  • IEC60335 / IEC60950 / IEC 61032 :Test Finger Probe

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
    Model Number: HT-I02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Aluminum box
    Delivery Time: 7 days
    Payment Terms: T/T
    Supply Ability: 100 set/ month
    Contact Now
    Detailed Product Description
    Standard: IEC 61032 Figure 2 Test Sample: Mechanical Parts
    Finger Length: 80±0.2 Cylindrical: R2±0.05

    Test Finger Probe B





    Product information:

    This is a precision test finger made in accordance with many standards like IEC 61032 figure 2,  IEC60950 figure 2A,IEC60884,IEC60335,UL507,and UL1278 figure 8.4. This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. This test finger probe consists of dito,finger,base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°.



    Customizable: it can be used for anti-electric shock test when equipped with pluggable banana plugs and amphenol connector at the end of the handle , or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).



    Main specification and corresponding technical parameters:



    Parameters /Model

    HT-I02

    HT-I02A

    HT-I02B

    HT-I02T

    Name

    Standard test finger

    Circular baffle test finger

    Large baffle test finger

    Standard test finger with force

    1

    30±0.2

    30±0.2

    30±0.2

    30±0.2

    2

    60±0.2

    60±0.2

    60±0.2

    60±0.2

    3

    80±0.2

    80±0.2

    100±0.2

    80±0.2

    4

    180±0.2

    180±0.2

    ----

    180±0.2

    5

    R2±0.05

    R2±0.05

    R2±0.05

    R2±0.05

    6

    S4±0.05

    S4±0.05

    S4±0.05

    S4±0.05

    7

    37o  0 -10’

    37o   0 -10’

    37o   0 -10’

    37o  0 -10’

    8

    14 o  0 -10’

    14 o  0 -10’

    14 o   0 -10’

    14 o  0 -10’

    9

    Ф12 0 -0.05

    Ф12 0 -0.05

    Ф12 0 -0.05

    Ф12 0 -0.05

    10

    Ф50

    Ф50

    ----

    Ф50

    11

    20±0.2

    ----

    ----

    20±0.2

    12

    Ф75±0.2

    Ф75±0.2

    Ф125±0.2

    Ф75±0.2

    13

    5±0.5

    5±0.5

    ----

    5±0.5

    14

    ----

    ----

    ----

    10-30N force

    15

    IEC61032.1

    IEC60335-1

    IEC60335-2-14

    IEC60529

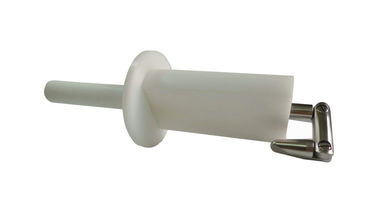

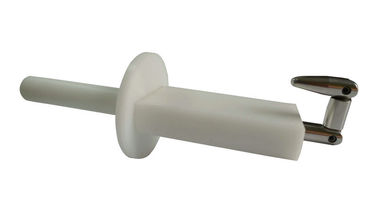

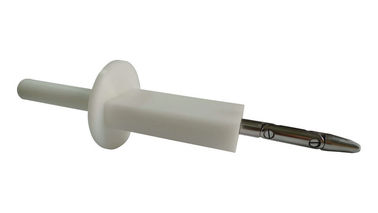

    Pictures view:



    In sequence:HT-I02,HT-I02A, HT-I02B, HT-I02T



    IEC60335 / IEC60950 / IEC 61032 :Test Finger Probe

    IEC60335 / IEC60950 / IEC 61032 :Test Finger Probe
