Single Energy And Adjustable Energy Spring Hammers For Impact Tests

Single Energy And Adjustable Energy Spring Hammers For Impact Tests

    • Single Energy And Adjustable Energy Spring Hammers For Impact Tests
    • Single Energy And Adjustable Energy Spring Hammers For Impact Tests
    • Single Energy And Adjustable Energy Spring Hammers For Impact Tests
    • Single Energy And Adjustable Energy Spring Hammers For Impact Tests
    • Single Energy And Adjustable Energy Spring Hammers For Impact Tests
    • Single Energy And Adjustable Energy Spring Hammers For Impact Tests
  • Single Energy And Adjustable Energy Spring Hammers For Impact Tests

    Product Details:

    Place of Origin: China
    Brand Name: HongTong
    Certification: Calibration Certificate (Cost Additional)
    Model Number: SH

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Aluminum box
    Delivery Time: 7 days
    Payment Terms: T/T
    Supply Ability: 100 set/ month
    Contact Now
    Detailed Product Description
    Model: SH-1/SH-2/SH-5/SH-6 Impact Energy: Single Energy And Adjustable Energy
    Impact Element Mass: 250g±5g/500g±5g Standard: IEC 60068-2-63, IEC 60068-2-75 Test Ehb Etc.

    Single Energy And Adjustable Energy Spring Hammers For Impact Tests





    Product details:



    This spring impact test conforms to the standard requirements of IEC60068-2-63,IEC60068-2-75,IEC60335 and IEC60598. As required in the standards, it is used to test the mechanical integrity of product enclosures.  After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards.

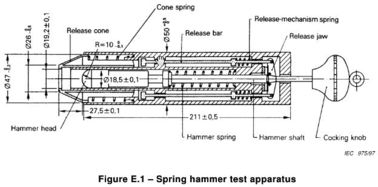

    Body: Includes release mechanism and striking element guide, mass 1250 g.
    Striking element: With cocking knob and hammer head, face is polyamide, hemispherical with a radius of 10 mm, hardness of HR85-100, mass 250 g
    Release Cone: mass 60 g, 10N release force



    Technical parameters:



    Model

    SH-1

    SH-2

    SH-5

    SH-6

    Impact energy J

    0.14,0.2,0.35,0.5,0.7,1

    2

    0.2,0.35,0.5,0.7,1

    0.14,0.2,0.35,0.5,0.7,1

    Allowable error

    ±10%

    ±10%

    ±10%

    ±10%

    The weight of Impact element

    250g±5g

    500g±5g

    250g±5g

    250g±5g

    The power

    <10N

    <10N

    <10N

    <10N

    The whole weight

    1250g±10g

    1500g±10g

    1450g±10g

    1450g±10g


    How to use this equipment ?Click here user manual SH-1.pdf  to get the user manual for your reference .

     Picture view:

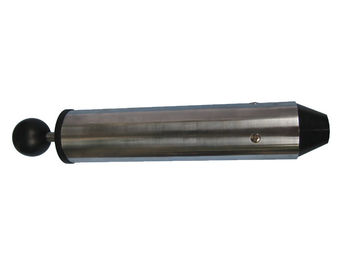

    Single Energy And Adjustable Energy Spring Hammers For Impact Tests

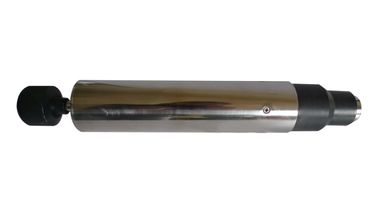

    Single Energy And Adjustable Energy Spring Hammers For Impact Tests
