IEC60320-1 Clause 18.2 Figure 13 Coupler Heating Device For Heat Resistance

IEC60320-1 Clause 18.2 Figure 13 Coupler Heating Device For Heat Resistance

    • IEC60320-1 Clause 18.2 Figure 13 Coupler Heating Device For Heat Resistance
    • IEC60320-1 Clause 18.2 Figure 13 Coupler Heating Device For Heat Resistance
    • IEC60320-1 Clause 18.2 Figure 13 Coupler Heating Device For Heat Resistance
  • IEC60320-1 Clause 18.2 Figure 13 Coupler Heating Device For Heat Resistance

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Calibration Certificate(cost additional)
    Model Number: TR-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Plywood
    Delivery Time: 25 days
    Payment Terms: T/T
    Supply Ability: 15 set per month
    Contact Now
    Detailed Product Description
    Test Temperature: 0-200℃, Can Be Preset Test Time: 0-99 Hours And 59 Minutes

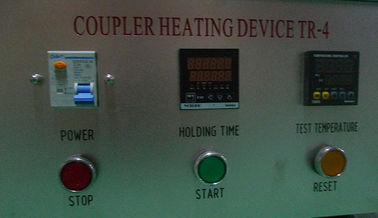

    IEC60320-1 Clause 18.2 Figure 13 Coupler Heating Device





    Product Information:



    This device is designed according to the IEC60320-1,clause 18.2 figure 13 standard requirements . It is used for testing the heat resistance of coupler in hot conditions and very hot conditions, this device adopts temperature control, precise display and durable.





    Technical Parameters:



    Model No. TR-4
    Standard IEC60320-1 clause 18.2 and figure 13
    Power Supply AC120V, 50Hz or AC220V, 60HZ
    Coupler inlets (as below):
    10A heat resistance appliance inlet Test 10A connector, test temperature 120℃ ± 2℃
    10A very hot resistance appliance inlet Test 10A connector, test temperature 155℃± 2℃
    16A very hot resistance appliance inlet Test 16A connector, test temperature 155℃ ± 2℃
    Test temperature 0-200℃, can be preset
    Test time 0-99 hours and 59 minutes, can be preset
    Coupler center distance Uniform arrangement byΦ175 circular



    IEC60320-1 Clause 18.2 Figure 13 Coupler Heating Device For Heat Resistance
