IEC61032 Figure 7 Device 11 Rigid Test Finger Probe / Rigid Finger Probe With Force

IEC61032 Figure 7 Device 11 Rigid Test Finger Probe / Rigid Finger Probe With Force

    • IEC61032 Figure 7 Device 11 Rigid Test Finger Probe / Rigid Finger Probe With Force
    • IEC61032 Figure 7 Device 11 Rigid Test Finger Probe / Rigid Finger Probe With Force
    • IEC61032 Figure 7 Device 11 Rigid Test Finger Probe / Rigid Finger Probe With Force
    • IEC61032 Figure 7 Device 11 Rigid Test Finger Probe / Rigid Finger Probe With Force
    • IEC61032 Figure 7 Device 11 Rigid Test Finger Probe / Rigid Finger Probe With Force
    • IEC61032 Figure 7 Device 11 Rigid Test Finger Probe / Rigid Finger Probe With Force
  • IEC61032 Figure 7 Device 11 Rigid Test Finger Probe / Rigid Finger Probe With Force

    Product Details:

    Place of Origin: China
    Brand Name: HongTong
    Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
    Model Number: HT-I07

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Aluminum Box
    Delivery Time: 7 Days
    Payment Terms: T/T
    Supply Ability: 100 set/ month
    Contact Now
    Detailed Product Description
    Model: HT-I07T1 Item Name: Rigid Finger Probe
    Force: 0-50N Standard: IEC61032 Figure 7 Device 11

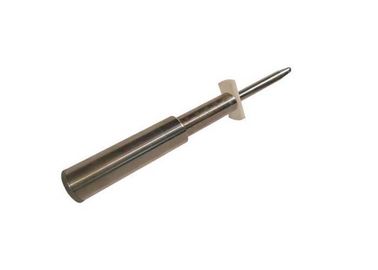

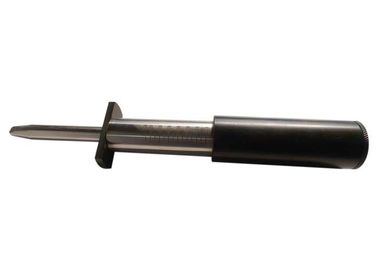

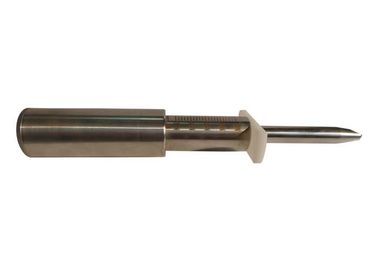

    IEC61032 Figure 7 Device 11 Rigid Test Finger Probe




    Products information:
    This rigid finger probe conforms to the standard requirement of IEC61032 figure 7 device 11,IEC60884,IEC60598,IEC60335,IEC60065. It is used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strengthen of openings in the enclosure or internal barriers.

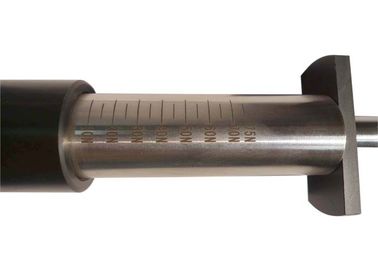

    Customizable: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.

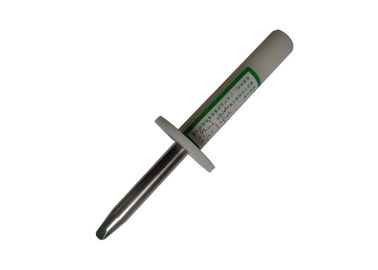

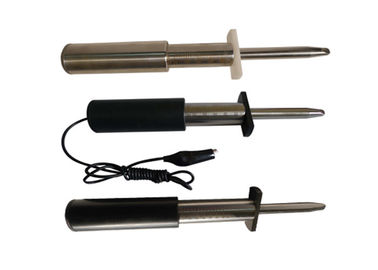

    There are two kinds of shell that can be chosen: the nylon shell(for anti-electric shock test) and stainless steel shell(for strength test)

    Main specification and corresponding technical parameters:


    Parameters /Model

    HT-I07

    HT-I07T1

    HT-I07T2

    Name

    Test finger

    Test finger with 50N force

    Test finger with 75N force

    1

    20 0 -0.05

    20 0 -0.05

    20 0 -0.05

    2

    80±0.2

    80±0.2

    80±0.2

    3

    R2±0.05

    R2±0.05

    R2±0.05

    4

    S4±0.05

    S4±0.05

    S4±0.05

    5

    37o  0 -10’

    37o   0 -10’

    37o   0 -10’

    6

    14 o  0 -10’

    14 o  0 -10’

    14 o   0 -10’

    7

    Ф12 0 -0.05

    Ф12 0 -0.05

    Ф12 0 -0.05

    8

    Ф50

    Ф50

    ----

    9

    5±0.5

    5±0.5

    ----

    10

    ----

    0-50N force

    0-75N force


    IEC61032 Figure 7 Device 11 Rigid Test Finger Probe / Rigid Finger Probe With Force
