Stainless Steel Impact Testing Machine Striking Element Confirm To IEC60068-2-75

Stainless Steel Impact Testing Machine Striking Element Confirm To IEC60068-2-75

    • Stainless Steel Impact Testing Machine Striking Element Confirm To IEC60068-2-75
    • Stainless Steel Impact Testing Machine Striking Element Confirm To IEC60068-2-75
    • Stainless Steel Impact Testing Machine Striking Element Confirm To IEC60068-2-75
    • Stainless Steel Impact Testing Machine Striking Element Confirm To IEC60068-2-75
  • Stainless Steel Impact Testing Machine Striking Element Confirm To IEC60068-2-75

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Calibration certificate(cost additional)
    Model Number: SH-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiatable
    Packaging Details: Carton Box
    Delivery Time: 7 Days
    Payment Terms: T/T
    Supply Ability: 50 set/ month
    Contact Now
    Detailed Product Description
    Energy: 2J/5J/10J/20J/50J Equivalent Mass: 0.5kg/1.7kg/5kg/5kg/10kg
    Diameter(mm): 35/60/80/100/125 Material: Stainless Steel
    Function: Impact Test Application: Mechanical Impact Strength Test
    Standard: IEC60068-2-75 Annex A Warranty: 1 Year
    High Light:

    impact test machine

    ,

    pendulum impact testing machine

    Stainless Steel Impact Testing Machine Striking Element Confirm To IEC60068-2-75





    Product details:

    This series of striking elements are manufactured in accordance with the standard requirement of IEC60068-2-75 chat1and chat 2. When the striking element is released in a height, the corresponding impact energy can be produced. It can be used for the Oscillating impact test with the pendulum.



    Application:
    Impact hammer are used to check the durability of enclosures for electrical appliances or other electronic products. If damage occurs from the impact hammer test, accessibility probe can be used to measure the extent or severity of the damage. The impact hammer simulates the mechanical impact to which electrical equipment may be subjected.
    Impact Testing Machine


    Instrument:
    The instrument is designed to confirm to IEC60068-2-75 and other commonly used standards in the market. All components are made to the specifications required by the standards. Hammers are available in single force selections or a universal spring hammer that offers five selectable impact energies. Each hammer is delivered in a protective case with a calibration certificate.


    Features:
    Body (includes release mechanism and striking element guide) mass=1250g±1g
    Striking element with cocking knob and hammer head, polyamide face with a radius of 10mm mass=250g±1g
    Hardness of hammer head=R100 (Rockwell Hardness)
    Release Cone: 60g, release pressure<10N

    Impact Testing Machine

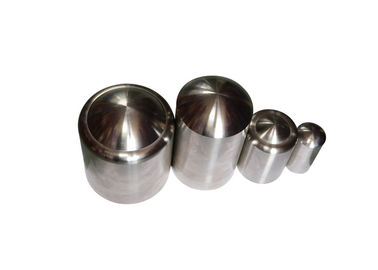

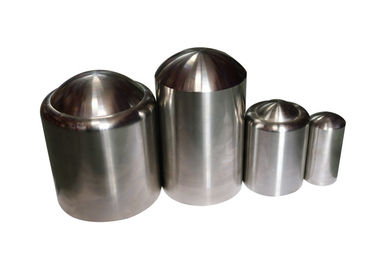

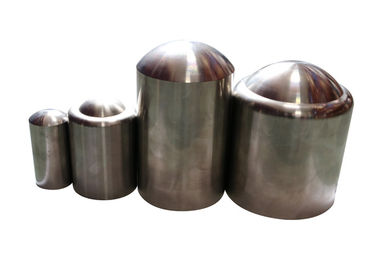

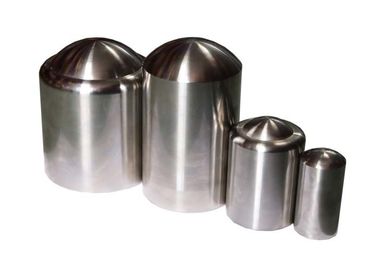

    Striking elements for impact test
    Application
    Striking elements for impact test are used to check the durability of enclosures for electrical appliances or other electronic products.
    If damage occurs from the impact hammer test, accessibility probe can be used to measure the extent or severity of the damage.
    Energy: 5J, shapes of elements: Dia.60mm, long75mm; Equivalent mass: 1.7 kg
    Energy: 10J, shapes of elements: Dia.80mm, long117mm; Equivalent mass: 5 kg
    Energy: 20J, shapes of elements: Dia.100mm, long100mm; Equivalent mass: 5 kg
    Energy: 50J, shapes of elements: Dia.125mm, long125mm; Equivalent mass: 10 kg



    Technical parameters:

    Model (energy)

    2J

    5J

    10J

    20J

    50J

    The equivalent mass/kg

    0.5

    1.7

    5

    5

    10

    The height of dropping ±1%/mm

    400

    300

    200

    400

    500

    The diameter/mm

    35

    60

    80

    100

    125

    Material

    stainless steel


    Stainless Steel Impact Testing Machine Striking Element Confirm To IEC60068-2-75 0
    Stainless Steel Impact Testing Machine Striking Element Confirm To IEC60068-2-75 1
