Vertical Hammer Impact Testing Machine IEC60068-2-75 Lab Test Equipment

Vertical Hammer Impact Testing Machine IEC60068-2-75 Lab Test Equipment

  • Vertical Hammer Impact Testing Machine IEC60068-2-75 Lab Test Equipment
Vertical Hammer Impact Testing Machine IEC60068-2-75 Lab Test Equipment
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: VH-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
High Light:

impact test machine

,

pendulum impact testing machine

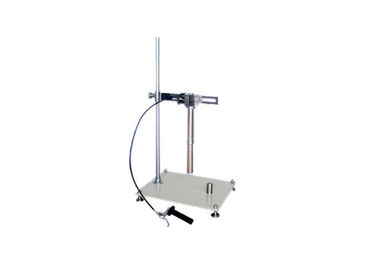

Vertical Hammer Impact Testing Machine IEC60068-2-75 Lab Test Equipment





Product details:



This device conforms to the standard requirement of the IEC60068-2-75 Test Ehc. The hammer consists basically of a striking element which falls freely from rest through a vertical height, selected from following table, on to the specimen surface held in a horizontal plane. The fall of the striking element shall be along a guideway, for example a tube, with negligible braking. This guideway shall not rest on the specimen and the striking element shall be free of the guideway on striking the specimen.





Technical parameters:



The height distance:0-1000mm

The hammer: 2J, stainless steel

The conduit: Φ35×300mm

The way of releasing: by manual

Table-Height of fall

Energy

   J

0.2

0.35

0.5

0.7

1

2

5

10

20

50

Equivalent

   Mass

    kg

0.25

0.25

0.25

0.25

0.25

0.5

1.7

5

5

10

Height of fall

mm±1%

80

140

200

280

400

400

300

200

400

500

The height of fall shall be as giver in above table, the equivalent mass stated therein being equal to the actual mass of the striking element.



Operation steps:

A proper hammer is chose according to the related standard requirement. Place the sample on the bottom of the conduit and adjust the height of the conduit the height is measured by the ruler) Next, put the hammer on the top of the conduit and press the release button. Thus the impact hammer falls down and hit the sample.





About us:



HongTong Electromechanical Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
