PTI / CTI Flammability Testing Equipment 0~600V Adjustable Precision 1.5%

PTI / CTI Flammability Testing Equipment 0~600V Adjustable Precision 1.5%

    • PTI / CTI Flammability Testing Equipment 0~600V Adjustable Precision 1.5%
    • PTI / CTI Flammability Testing Equipment 0~600V Adjustable Precision 1.5%
    • PTI / CTI Flammability Testing Equipment 0~600V Adjustable Precision 1.5%
    • PTI / CTI Flammability Testing Equipment 0~600V Adjustable Precision 1.5%
  • PTI / CTI Flammability Testing Equipment 0~600V Adjustable Precision 1.5%

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: TUV、ITS、CSA、BV、SGS 、CNAS
    Model Number: LT-1 & LT-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Plywood
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 15 sets per month
    Contact Now
    Detailed Product Description
    High Light:

    flammability chamber

    ,

    flame test equipment

    Lab Equipment Tracking Index Tester for PTI and CTI in Medium Pollution Condition





    Product information:

    The tester is designed and manufactured according to the standard requirements of IEC60112,IEC60335-1,IEC60598-1,UL746A and ASTM D3638-92 . The working principle of the leakage tracking test(tracking index testing) is that the conducting liquid (0.1%NH 4 CL) of required volume in the required height (35mm ) and required time (30s) drops with the voltage between the platinum electrodes(2mm × 5mm )on the surface of solid insulating material. Thus the users evaluate the tracking resistance performance of solid insulating material surface under the combined influence of electric field and humid or contaminate medium. In a word, this device is used to measure the compare tracking index (CTI) and electrical resistance index (PTI).

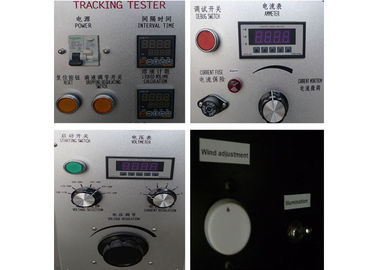

    A gauge block is supplied with the instrument to ensure the electrodes have the proper distance between them. The table height is easily adjustable to ensure the proper angle of the electrodes and height of drops. The rest of the test is controlled from outside the test chamber with the door closed. The voltage, limiting current, drip rate and number of drips are all set on the control panel. An operator should observe the test to see if a flame ignites. The instrument sounds an alarm if there is a tracking failure of at least two seconds.

    Leakage tracking tester is suitable for the research, production and quality department of lighting equipment, low-voltage apparatus, household appliance, machine tool electric appliance, electrical machine, electric tool, electronic instrument, electrotechnical instrument, information technology equipment. I t is also suitable for the industry of insulating material, engineering plastics, electrical connector and accessories.



    Model specification and technical parameters (Optional for touch screen LT-3):



    Parameter model

    LT-1(0.1m³)

    LT-2(0.5m³)

    Working voltage

    220V/50Hz,1KVA

    220V/50Hz,1KVA

    Testing voltage

    0~600V adjustable,precision 1.5%

    0~600V adjustable,precision 1.5%

    Timing device

    9999X0.1S

    9999X0.1S

    Electrode

    Platinum electrode and brass electrode each for a pair

    Platinum electrode and brass electrode each for a pair

    Electrode dimension

    (5±0.1)×(2±0.1)×(≥12)㎜,

    30°slant

    (5±0.1)×(2±0.1)×(≥12),

    30°slant

    Electrode included angle and distance

    60°±5°,distance is (4±0.1㎜)

    60°±5°, distance is (4±0.1㎜)

    Electrode pressure

    1.00N±0.05N(digital display is optional)

    1.00N±0.05N(digital display is optional)

    The interval of dropping liquid

    30±5S,adjustable

    30±5S,adjustable

    Dropping liquid height

    35±5mm

    35±5mm

    Dropping liquid delay

    0.2S(solenoid valve opening time)

    0.2S(solenoid valve opening time)

    Dropping liquid size

    45~50 drip/cm3

    45~50 drip/cm3

    Time-delay circuit

    2±0.1S(in 0.5A or larger current)

    2±0.1S(in 0.5A or larger current)

    Short-circuit pressure drop

    8% MAX

    8% MAX

    Short-circuit current

    1±0.1A   1%

    1±0.1A   1%

    Wind speed

    0.2m/s

    0.2m/s

    Environmental requirement

    0~40℃,relative humidity≤80%,in the place of no obvious vibration and corrosive gas

    conforms to standard

    IEC60695,IEC60112,UL746A,ASTMD3638

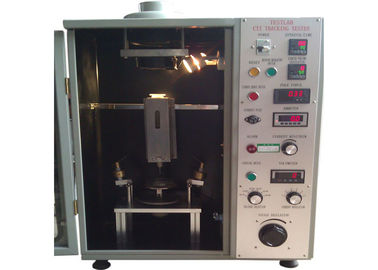

    PTI / CTI Flammability Testing Equipment 0~600V Adjustable Precision 1.5% 0

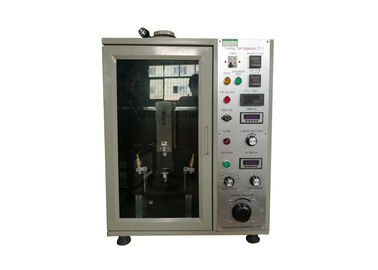

    PTI / CTI Flammability Testing Equipment 0~600V Adjustable Precision 1.5% 1
