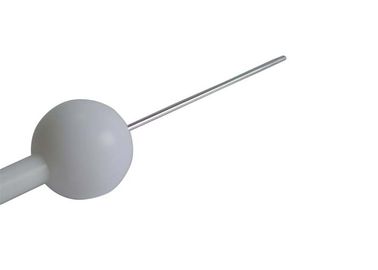

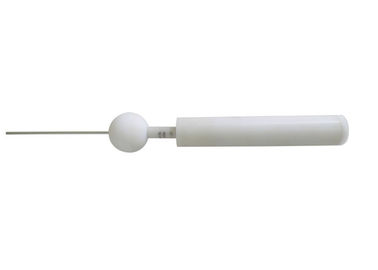

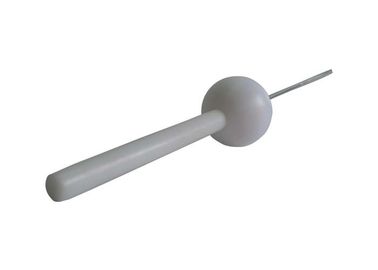

IEC61032 Figure 3 Test Finger Probe Test Rod Probe C 2.5mm

IEC61032 Figure 3 Test Finger Probe Test Rod Probe C 2.5mm

  • IEC61032 Figure 3 Test Finger Probe Test Rod Probe C 2.5mm
  • IEC61032 Figure 3 Test Finger Probe Test Rod Probe C 2.5mm
  • IEC61032 Figure 3 Test Finger Probe Test Rod Probe C 2.5mm
  • IEC61032 Figure 3 Test Finger Probe Test Rod Probe C 2.5mm
  • IEC61032 Figure 3 Test Finger Probe Test Rod Probe C 2.5mm
IEC61032 Figure 3 Test Finger Probe Test Rod Probe C 2.5mm
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: HT-I03
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Aluminum Box
Delivery Time: 7 Days
Payment Terms: T/T
Supply Ability: 100 set/ month
Contact Now
Detailed Product Description
High Light:

environmental test chamber

,

waterproof tester

IEC61032 Figure 3 Test Finger Probe Test Rod Probe C 2.5mm





Product information:



This probe conforms to standard requirements of IEC61032 test probe C and IEC60529 for IP3 and IEC60065.

This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a tool.

Customizable: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.



Main specification and corresponding technical parameters:



Parameters /Model

HT-I03

HT-I03T

Name

Test rod probe C

Test rod probe C with force

1

Ф2.5+0.05  0

Ф2.5+0.05  0

2

SФ35±0.2

SФ35±0.2

3

Ф10

Ф10

4

100±0.2

100±0.2

5

100

----

6

----

3N force

14

IEC61032.1

IEC60529







IEC61032 Figure 3 Test Finger Probe Test Rod Probe C 2.5mm 0
