Portable Ingress Protection Test Equipment Handheld Spray Nozzle IPX3 IPX4

Portable Ingress Protection Test Equipment Handheld Spray Nozzle IPX3 IPX4

    • Portable Ingress Protection Test Equipment Handheld Spray Nozzle IPX3 IPX4
    • Portable Ingress Protection Test Equipment Handheld Spray Nozzle IPX3 IPX4
    • Portable Ingress Protection Test Equipment Handheld Spray Nozzle IPX3 IPX4
    • Portable Ingress Protection Test Equipment Handheld Spray Nozzle IPX3 IPX4
  • Portable Ingress Protection Test Equipment Handheld Spray Nozzle IPX3 IPX4

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: TUV、ITS、CSA、BV、SGS 、CNAS
    Model Number: SN-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Plastic Tool Box
    Delivery Time: 7 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 100 sets/ month
    Contact Now
    Detailed Product Description
    IP Rating: IPX3 IPX4 Material: Brass
    Water Flow: 10L/min±5% Hole Diameter: Ф0.5mm

    Portable Safety Ingress Protection Test Equipment IPX3 / IPX4 Handheld Spray Nozzle





    Product information:



    The spray nozzle is designed and manufactured in accordance with IEC60529 clause IPX3 and IPX4. It is used for the waterproof test of the electric appliance. Some parts of the enclosure can not be wet by the oscillating tube. Under this circumstance, the handheld spray nozzle is used by manual.

    The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test.



    Technical parameters:



    No.

    Item

    parameter

    1

    Water supply

    Water flow rate is 50~150kpa clean water without inclusion.

    2

    Spray nozzle parameters

    external diameter: Ф102mM

    spherical diameter: SФ75.5mm

    There is a middle hole and There are 24 holes in the internal circle of holes of which the included angle is   30°. There are 96 holes in the external circle of holes of which the included angle is 15°. 121 holes in total.

    The hole diameter: Ф0.5mm

    It is made of brass.

    3

    Water flow

    10L/min±5%,Flow meter is adjustable

    4

    Range of pressure gauge

    0~0.4Mpa

    5

    Baffle

    removable

    6

    Pressure gauge

    0~0.25MPa

    7

    Site requirements

    Dedicated IP waterproof test room,The ground should be flat with illumination

    With good function of inflow and drainage. Wall installation

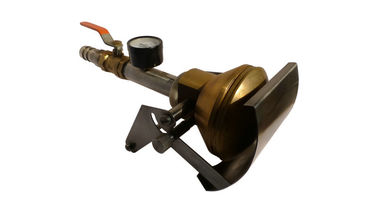

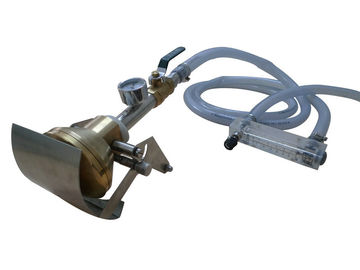

    Picture view:



    Portable Ingress Protection Test Equipment Handheld Spray Nozzle IPX3 IPX4

    Portable Ingress Protection Test Equipment Handheld Spray Nozzle IPX3 IPX4
