IEC60068-2-75 Annex A Impact Testing Machine IK Level Test IK07 To IK10 And 50J

IEC60068-2-75 Annex A Impact Testing Machine IK Level Test IK07 To IK10 And 50J

  • IEC60068-2-75 Annex A Impact Testing Machine IK Level Test IK07 To IK10 And 50J
  • IEC60068-2-75 Annex A Impact Testing Machine IK Level Test IK07 To IK10 And 50J
  • IEC60068-2-75 Annex A Impact Testing Machine IK Level Test IK07 To IK10 And 50J
IEC60068-2-75 Annex A Impact Testing Machine IK Level Test IK07 To IK10 And 50J
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: SH-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Carton Box
Delivery Time: 10 Days
Payment Terms: T/T
Supply Ability: 50 set/ month
Contact Now
Detailed Product Description
Name: Striking Element Warranty: 1 Year
Usage: Impact Test, IK Level Test Standard: IEC60068-2-75 Annex A
IK Code: IK07/IK08/IK09/IK10 Diameter: 35,60,80,100,125
Material: Stainless Steel Test Sample: Electrical Appliance, Luminaries
High Light:

Annex A Impact Testing Machine

,

IEC60068-2-75 Impact Testing Machine

,

IK10 Impact Testing Machine

IEC60068-2-75 Annex A Impact Testing Machine IK Level Test IK07 to IK10, and 50J​

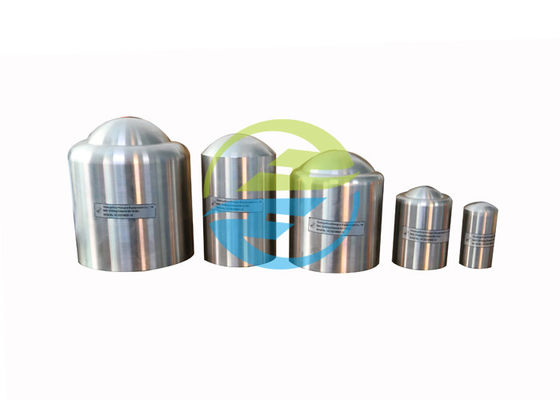

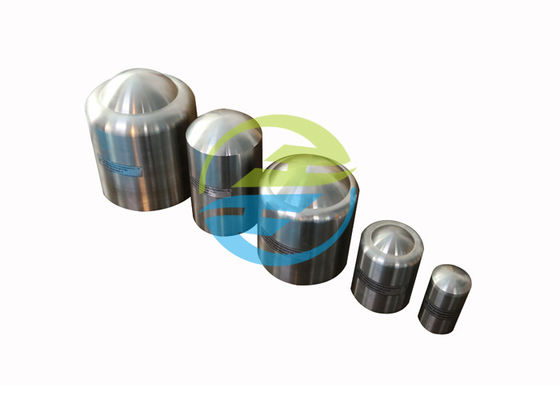

The figures in this annex show the shape and characteristics of the striking elements applicable to each of the six energy values defined in Table 1 . For the purpose of these figures, the lengths of the striking element are calculated for vertical hammers or for pendulum hammers with arms of negligible mass. When the mass of the arms cannot be neglected, the lengths of the striking element should be reduced so that the equivalent mass meets the requirements of Table 1 (see 3.2)

IEC60068-2-75 Annex A Impact Testing Machine IK Level Test IK07 To IK10 And 50J 0



Standard: IEC60068-2-75 Annex A                                Impact Testing Machine

Application: This device is suitable for mechanical impact strength test to electric cabinets and other sheet metal, shell of Non metal electric energy metering cabinet, substation cable switchboard and cable junction box with vertical impact tester or pendulum impact device.

Test sample: Electrical appliance for household and similar purpose, luminaries

Feature: In according with the standard requirement                                  Impact Testing Machine

Parameters:

Model(Energy) 2J 5J 10J 20J 50J
equivalent mass(kg) 0.5 1.7 5 5 10
Dripping height(±1% mm) 400 300 200 400 500
Diameter(mm) 35 60 80 100 125



IEC60068-2-75 Annex A Impact Testing Machine IK Level Test IK07 To IK10 And 50J 1

IEC60068-2-75 Annex A Impact Testing Machine IK Level Test IK07 To IK10 And 50J 2

IEC60068-2-75 Annex A Impact Testing Machine IK Level Test IK07 To IK10 And 50J 3

IEC60068-2-75 Annex A Impact Testing Machine IK Level Test IK07 To IK10 And 50J 4
