| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | HH0801 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set /month |
| Vertical Rain-drop Area: | 1000mm*1000mm (customizable) | Test Range: | IPX1 To IPX2 |
|---|---|---|---|
| Needle Hole: | Φ0.4mm | Drip Height: | 200mm |
| Installation Method: | Wall Mounted | Control And Operation: | PLC Intelligent Control, 7 Inch Color Touch Screen Operation |
| Diameter Of Tiltable Rotating Stage: | Ø800mm (customizable) | Rotating Speed: | 1r/min |
| High Light: | IPX12 Ingress Protection Test Equipment,IEC 60529 Ingress Protection Test Equipment,Drip Box Ingress Protection Test Equipment |
||

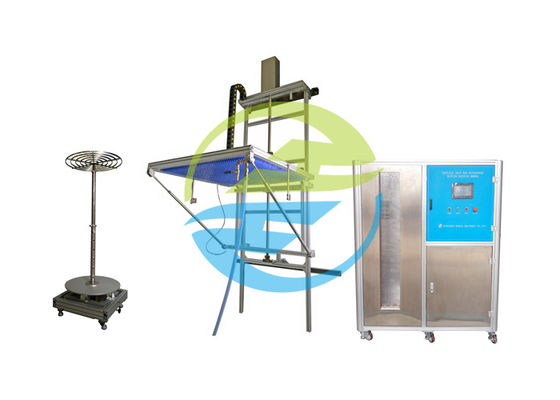

Vertical Drip Box Waterproof Testing Machine - Ingress Protection Test Equipment - IEC60529 IPX12
Standard:IEC60529 degree of protection provided by enclosures (IP Code) of the IPX1 and IPX2, IEC60884-1, IEC60335-1, IEC60598-1.
Application:It is used for the testing of IPX1 and IPX2. Ingress Protection Test Equipment
Test sample:The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components,car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.).

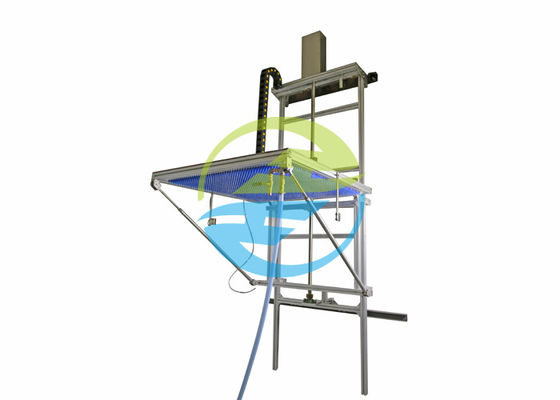

Feature:The rise and fall of the drip box is controlled by the motor. It is equipped with the rotatable objective table whose rotating speed is 1r/min for IPX1 test; It is also equipped with 15°bevel for supporting sample for the IPX2 test. This device is with the clean water filtration unit which can prevent pinhole from jamming, it is controlled by PLC electrical control system, and touch screen operation.
Ingress Protection Test Equipment
Parameters:
| Item | Parameter |
| Water supply | Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |
| Control and operation | PLC intelligent control, 7 inch color touch screen operation |
| Testing time | 0-999.9min |
| Water tank size | Outline dimension:WDH=750×1400×1750mm, fully enclosed water tank, SUS304 material |
| Drip test area | 1000×1000mm, customizable |
| Drip height | 200mm, adjustable |
| Dripping rate (Water flow) | 1 mm/min or 3 mm/min switchable, adopt digital controlled rainfall technology |
| Needle hole | Φ0.4mm |
| Distance between holes | 20mm |
| Supporting sample | 15°bevel |
| Water tank lifting drive | Motor drive, screw guide rail to ensure the stable lifting and self-locking |
| Installation method | Wall mounted |
|

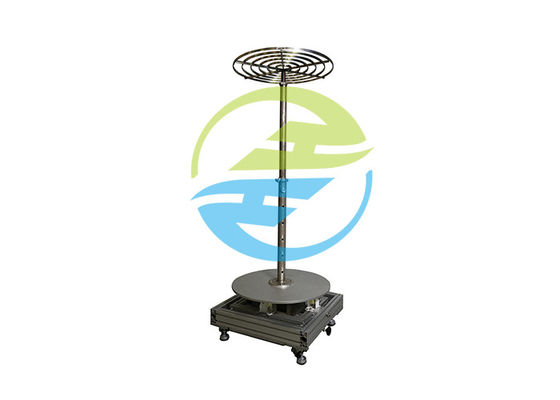

Rotary table Ingress Protection Test Equipment |
Rotating speed1r/min. Can be paused 150s at four aspects, Load bearing ≤150㎏electrical equipment, Diameter:800mm, Adjustable height of the adjustable telescopic tube: 300mm,1200mm-1500mm |
| Site requirements |
Dedicated IP waterproof test room,The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation. |
| Area covered | WDH =1500mm×1500mm×3300mm, the size can be set according to customer’s requirement |
